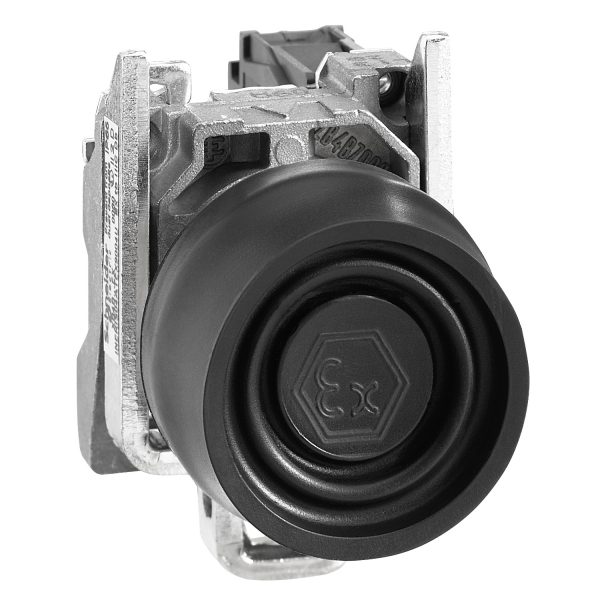

Schneider XB4BPS21EX Complete Push Button Black 22mm 1NO Atex
Schneider XB4BPS21EX Complete Push Button Main Specification
- Harmony XB4 range of product
- Complete push-button
- XB4 device short name
- Chromium plated metal bezel material
- Zamak fixing collar material
- Standard head type
- 22 mm mounting diameter
- Zone 21 – 22 dust zone
- Spring return type of operator
- Black projecting operator profile
- Booted (coloured silicon) operator additional information
- 1 NO contacts type and composition
Complementary
- 7000000 Pa at 55 °C, distance : 0.1 m resistance to high pressure washer
- Fixing hole – diameter: 22.5 mm 22.3 +0.4/0 device mounting conforming to EN/IEC 60947-1
- Fixing center >= 30 x 40 mm (support panel)
- 43 mm embedding depth
- Ex tb IIIC marking
- Round shape of signaling unit head
- Slow-break contact operation
- Without positive opening
- Operating travel:
- 2.6 mm (NO changing electrical state)
- 4.3 mm (total travel)
- 3.8 N NO changing electrical state operating force
- 5000000 cycles mechanical durability
- Connections – terminals:
- Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
- Screw clamp terminals, 1 x 0.22…2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
- 0.8…1.2 N.m tightening torque conforming to EN 60947-1
- Shape of screw head:
- Cross compatible with Philips no 1 screwdriver
- Cross compatible with pozidriv No 1 screwdriver
- Slotted compatible with flat Ø 4 mm screwdriver
- Slotted compatible with flat Ø 5.5 mm screwdriver
- Silver alloy (Ag/Ni) contacts material
- 10 A cartridge fuse type gG short-circuit protection conforming to EN/IEC 60947-5-1
- 10 A conventional free air thermal current conforming to EN/IEC 60947-5-1
- 600 V (pollution degree 3) rated insulation voltage conforming to EN/IEC 60947-1
- 6 kV rated impulse withstand voltage conforming to EN/IEC 60947-1
Environment
- Rated operational current:
- 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
- 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
- 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
- 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
- 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
- 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
- Electrical durability:
- 1000000 cycles AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C
- 1000000 cycles AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C
- 1000000 cycles AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C
- 1000000 cycles DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C
- 1000000 cycles DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C
- Electrical reliability:
- Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
- Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4
- TH protective treatment
- -40…70 °C ambient air temperature for storage
- -40…70 °C ambient air temperature for operation
- Overvoltage category I conforming to IEC 60536
- IP degree of protection:
- IP66 conforming to IEC 60529
- IP67
- IP69
- IP69K
- IK03 conforming to IEC 50102
- Standards:
- EN 50014
- EN 50281-1-1
- IEC 61241-0
- IEC 61241-1
- 94/9/EC – ATEX directive
- Product certifications:
- GL
- DNV
- INERIS 04ATEX9004U
- 5 gn (f= 2…500 Hz) vibration resistance conforming to IEC 60068-2-6
- Shock resistance:
- 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
- 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Push Button XB4 22mm Explosive Atmosphere Sertifikasi Atex Hitam Silikon Warna
