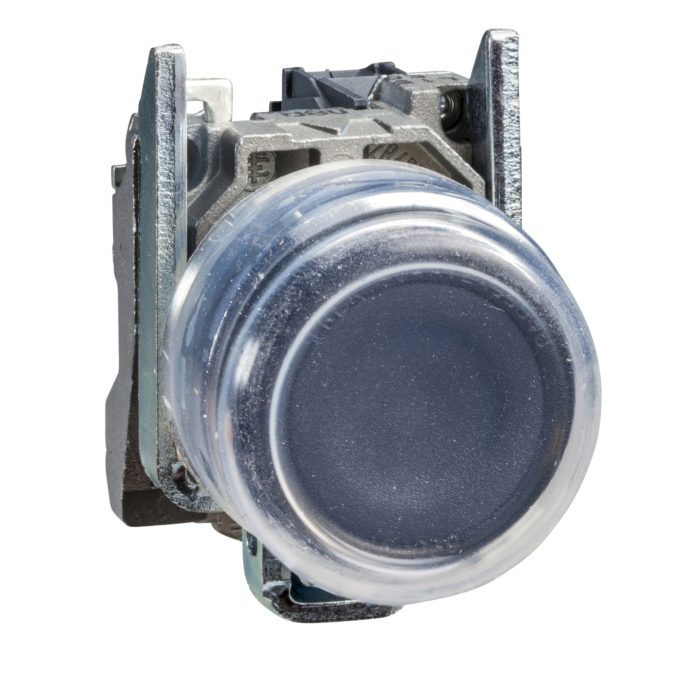

Schneider XB4BP21EX Black Illuminated Push Button 1NO
Schneider XB4BP21EX Black Illuminated Push Button Main Specification
- Harmony XB4 range of product
- Complete illuminated push-button
- XB4 device short name
- Chromium plated metal bezel material
- Zamak fixing collar material
- Standard head type
- 22 mm mounting diameter
- Zone 21 – 22 dust zone
- Spring return type of operator
- Black flush operator profile
- Booted (clear silicon) operator additional information
- 1 NO contacts type and composition
- (21-22)NC terminals description ISO n°1
- 7000000 Pa at 55 °C, distance : 0.1 m resistance to high pressure washer
- Fixing hole – diameter: 22.5 mm 22.3 +0.4/0 device mounting conforming to EN/IEC 60947-1
- Fixing center >= 30 x 40 mm (support panel)
- Single screw fixing mode: 0.8…1.2 N.m
- 43 mm embedding depth
- Ex tb IIIC marking
Complementary
- Round shape of signaling unit head
- Slow-break contact operation
- Without positive opening
- Operating travel:
- 2.6 mm (NO changing electrical state)
- 4.3 mm (total travel)
- Operating force:
- 3.8 N NO changing electrical state
- 3.8 N
- 5000000 cycles mechanical durability
- Connections – terminals:
- Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
- Screw clamp terminals, 1 x 0.22…2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
- 0.8…1.2 N.m tightening torque conforming to EN 60947-1
- Shape of screw head:
- Cross compatible with Philips no 1 screwdriver
- Cross compatible with pozidriv No 1 screwdriver
- Slotted compatible with flat Ø 4 mm screwdriver
- Slotted compatible with flat Ø 5.5 mm screwdriver
- Silver alloy (Ag/Ni) contacts material
- 10 A cartridge fuse type gG short-circuit protection conforming to EN/IEC 60947-5-1
- 10 A conventional free air thermal current conforming to EN/IEC 60947-5-1
- 600 V (pollution degree 3) rated insulation voltage conforming to EN/IEC 60947-1
- 6 kV rated impulse withstand voltage conforming to EN/IEC 60947-1
- Rated operational current:
- 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
- 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
- 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
- 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
- 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
- 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
- Electrical durability:
- 1000000 cycles AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C
- 1000000 cycles AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C
- 1000000 cycles AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C
- 1000000 cycles DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C
- 1000000 cycles DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1: appendix C
Environment
- Electrical reliability:
- Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
- Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4
- Steady signalling type
- Integral LED light source
- 24 V AC/DC 50/60 Hz rated supply voltage
- Supply voltage limits
- 19.2…30 V DC
- 21.6…26.4 V AC
- 18 mA current consumption
- 100000 h at rated voltage and 25 °C service life
- 1 kV surge withstand conforming to IEC 61000-4-5
- TH protective treatment
- -40…70 °C ambient air temperature for storage
- -40…70 °C ambient air temperature for operation
- Overvoltage category I conforming to IEC 60536
- IP67 conforming IP degree of protection
- IK03Â conforming to IEC 50102
- NEMA 4X conforming NEMA degree of protection
- Standards:
- EN 50281-1-1
- IEC 61241-0
- IEC 61241-1
- CSA C22.2 No 213
- 94/9/EC – ATEX directive directives
- INERIS 04ATEX9004U product certifications
- 5 gn (f= 2…500 Hz) vibration resistance conforming to IEC 60068-2-6
- Shock resistance:
- 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
- 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
- Resistance to electrostatic discharge:
- 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
- 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
- Class B electromagnetic emission conforming to IEC 55011
