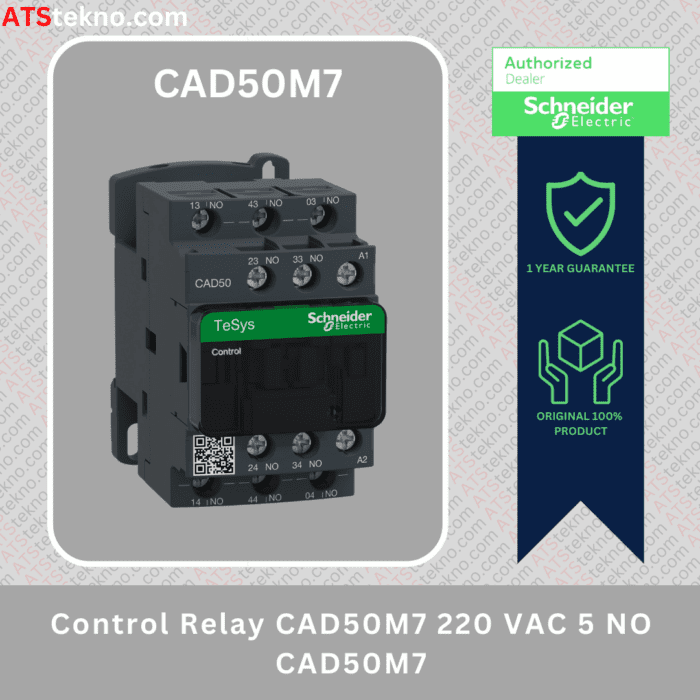

Schneider Control Relay CAD50M7 220 VAC 5 NO
Schneider Control Relay CAD50M7 Main Specification
- Range:
- Control relay product type
- TeSys CAD product name
- CAD device short name
- Control circuit contactor application
Complementary
- Utilisation category:
- 5 NO pole contact composition
- <= 690 V AC 25…400 Hz rated operational voltage
- AC at 50/60 Hz control circuit type
- 220 V AC 50/60 Hz control circuit voltage
- 6 kV rated impulse withstand voltage conforming to IEC 60947
- 10 A (at 60 °C) conventional free air thermal current
- Irms rated making capacity:
- 140 A AC conforming to IEC 60947-5-1
- 250 A DC conforming to IEC 60947-5-1
- Rated short-time withstand current:
- 100 A – 1 s
- 120 A – 500 ms
- 140 A – 100 ms
- 10 A gG associated fuse rating conforming to IEC 60947-5-1
- Rated insulation voltage:
- 600 V UL certified
- 600 V CSA certified
- 690 V conforming to IEC 60947-5-1
- Rail & Plate mounting support
- Screw clamp terminals:
- 1 cable(s) 1…4 mm²flexible without cable end
- 2 cable(s) 1…4 mm²flexible without cable end
- 1 cable(s) 1…4 mm²flexible with cable end
- 2 cable(s) 1…2.5 mm²flexible with cable end
- 1 cable(s) 1…4 mm²solid without cable end
- 2 cable(s) 1…4 mm²solid without cable end
Environment
- 1.2 N.m – on screw clamp terminals tightening torque with:
- Philips No 2 Screwdriver
- Flat Ø 6 mm Screwdriver
- Pozidriv No 2 Screwdriver
- Control circuit voltage limits:
- 0.3…0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz
- 0.8…1.1 Uc (-40…60 °C):operational AC 50 Hz
- 0.85…1.1 Uc (-40…60 °C):operational AC 60 Hz
- 1…1.1 Uc (60…70 °C):operational AC 50/60 Hz
- Operating time:
- 12…22 ms coil energisation and NO closing
- 4…12 ms coil de-energisation and NO opening
- 30 Mcycles mechanical durability
- 180 cyc/mn maximum operating rate
- 70 VA 50 Hz (at 20 °C) inrush power in VA
- 8 VA 50 Hz (at 20 °C) hold-in power consumption in VA
- 17 V minimum switching voltage
- 5 mA minimum switching current
- Non-overlap time:
- 1.5 ms on energisation between NC and NO contact
- 1.5 ms on de-energisation between NC and NO contact
- > 10 MOhm insulation resistance
- Mechanical robustness:
- Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27
- Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27
- Vibrations control relay open: 2 Gn, 5…300 Hz conforming to IEC 60068-2-6
- Vibrations control relay closed: 4 Gn, 5…300 Hz conforming to IEC 60068-2-6
- Standards:
- BS 4794
- EN 60947-5
- IEC 60947-5-1
- NF C 63-140
- VDE 0660
- IEC 60335-1
- Product certifications:
- IP2x front face conforming to VDE 0106
- TH protective treatment conforming to IEC 60068
- Ambient air temperature for operation:
- -40…60 °C
- 60…70 °C with derating
- -60…80 °C ambient air temperature for storage
- 0…3000 m operating altitude
