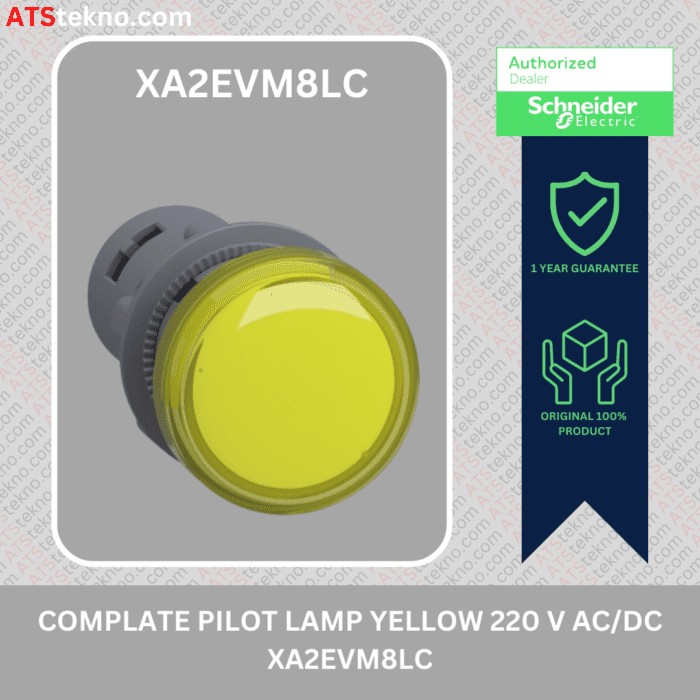

Schneider XA2EVM8LC Pilot Lamp Yellow 22mm 220VAC
Schneider XA2EVM8LC Pilot Lamp Yellow 22mm 220VAC Main Specification
- Easy Harmony XA2 range of product
- Monolithic pilot light product type
- XA2 device short name
- Plastic bezel material reset
- 22 mm mounting diameter
- Round shape of signaling unit head
- Yellow cap colour
- LED light source
- Integral LED bulb base
- 220…230 V AC 50/60 Hz rated supply voltage
- (X1-X2)PL terminals description ISO n°1
- Fixing hole 22.3 +0.4/0 device mounting conforming to EN/IEC 60947-5-1
- Fixing center:
- >= 30 x 40 mm (support panel) metal – thickness: 1…6 mm
- >= 30 x 40 mm (support panel) plastic – thickness: 2…6 mm
- Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m)
- Marking:
- Connections – terminals:
- Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
- Screw clamp terminals, 1 x 0.5…1 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
- Shape of screw head:
- Cross compatible with Philips No 2 screwdriver
- Slotted compatible with flat Ø 4 mm screwdriver
- Slotted compatible with flat Ø 5.5 mm screwdriver
- 400 V (pollution degree 3) rated insulation voltage conforming to EN/IEC 60947-1
- 6 kV rated impulse withstand voltage conforming to EN/IEC 60947-1
- Steady signalling type
- 0.8…1.2 V AC supply voltage limits
- Current consumption <= 20 mA
- 40000 h service life at rated voltage and 25 °C
- XA2E compatibility code
