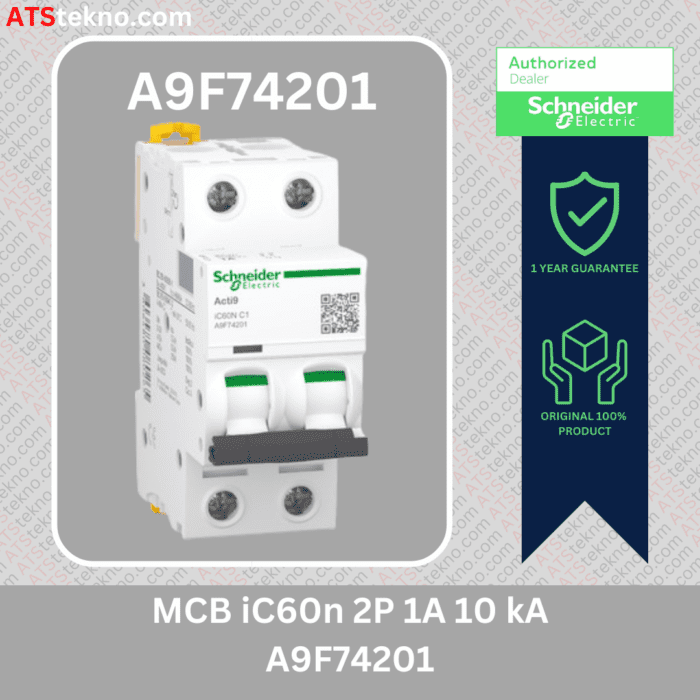

Schneider MCB iC60N A9F74201 2 Poles 1 Ampere 10kA - A9F74201
Rp578.600 Rp289.300 50% off! Sale!
Schneider MCB iC60N A9F74201 2 Poles 1 Ampere 10kA. This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 1A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 50kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 400VAC conforming to EN/IEC 60898-1 standard. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit.
Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 78.5mm. The weight is 0.25kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance.
Schneider MCB iC60N A9F74201 Main Specification
- Device application for distribution
- Range Acti9
- Product name Acti9 iC60
- Miniature circuit-breaker product type
- Device short name IC60N
- 2 Poles
- [In] rated current 1 Ampere
- AC & DC Network type
- Thermal-magnetic Trip unit technology
- Curve code C
- Breaking capacity
- 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
- 50 kA Icu at 12…60 V AC 50/60 Hz conforming to EN/IEC 60947-2
- 50 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2
- 25 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
- 10 kA Icu at <= 125 V DC conforming to EN/IEC 60947-2
- 50 kA Icu at 100…133 V AC 50/60 Hz conforming to EN/IEC 60947-2
- 50 kA Icu at 380…415 V AC 50/60 Hz conforming to EN/IEC 60947-2
- Utilisation category
- Category A conforming to EN 60947-2
- Category A conforming to IEC 60947-2
- Suitability for isolation
- IEC 60947-2
- EN 60898-1
- EN 60947-2
- IEC 60898-1
- Quality labels NF
- Contractual warranty for 12 months
Stock Available
