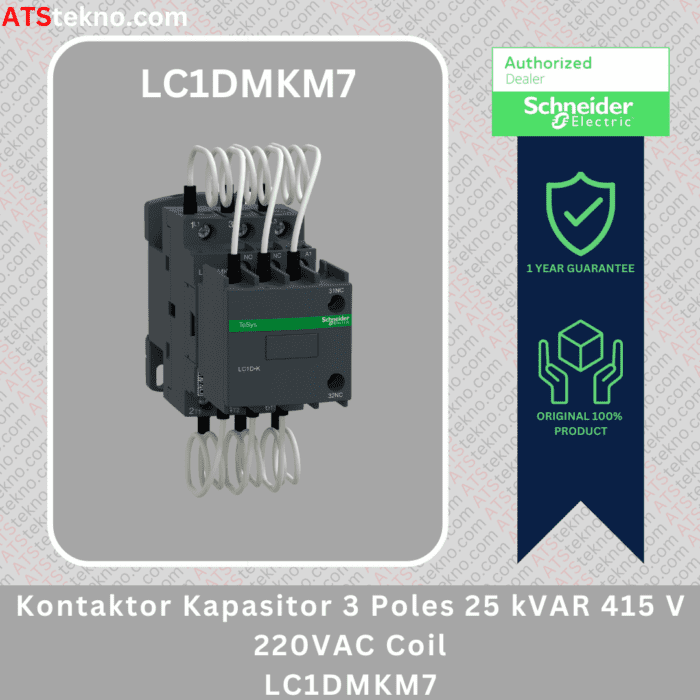

Schneider Kontaktor Kapasitor LC1DMKM7 3 Poles 25 kVAR 415 V 220VAC Coil

Rp1.662.964

Schneider Kontaktor Kapasitor LC1DMKM7 3 Poles 25 kVAR 415 V 220VAC Coil

Schneider Kontaktor Kapasitor LC1DMKM7 3 Poles 25 kVAR 415 V 220VAC Coil

• Range:
  • TeSys
  • TeSys Deca
• Product name:
  • TeSys LC1D.K
  • TeSys Deca
• Product or component type Capacitor duty contactor
• Device short name LC1DMK
• Device application Control
• Contactor application Power factor correction
• Power factor correction AC-6b
• 3 Poles
• Device location in system:
  • Line interruption
  • Inside delta interruption
• [Ue] rated operational voltage Power circuit: 690 V AC 50/60 Hz
• Reactive power rating:
  • 14 kvar at 230 V AC 50 Hz 60 °C
  • 25 kvar at 400 V AC 50 Hz 60 °C
  • 27 kvar at 440 V AC 50 Hz 60 °C
  • 42 kvar at 690 V AC 50 Hz 60 °C
• Control circuit type AC at 50/60 Hz
• [Uc] control circuit voltage 220 V AC 50/60 Hz
• Auxiliary contact composition 1 NO + 2 NC instantaneous
• Electrical durability:
  • 300000 cycles at Ue 400 V
  • 200000 cycles at Ue 690 V
• Mounting support:
  • DIN rail
  • Plate
• Standards:
  • EN/IEC 60947-1
  • EN/IEC 60947-4-1
  • IEC 60335-1
• Product certifications
  • IECEE CB Scheme
  • UKCA
• Tightening torque
  • Control circuit: 1.7 N.m – on screw clamp terminals
  • Power circuit: 2.5 N.m – on screw clamp terminals
• Maximum operating rate 240 cyc/h

Schneider Kontaktor Kapasitor LC1DMKM7 Complementary

• Auxiliary contacts type Type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1

Environment

• IP degree of protection IP20 front face conforming to IEC 60529
• Ambient air temperature for operation -5…60 °C
• Ambient air temperature for storage -60…80 °C
• Operating altitude 0…3000 m

Packing Units

• PCE Package Unit Type
• 1 Units in Package
• Height 7,00 cm
• Weight 19,50 cm
• Height 23,00 cm
• Weight 600,00 gr

Warranty

• 18 months Contractual warranty

Stock Available

SKU: LC1DMKM7 Categories: Contactor, Kontaktor
