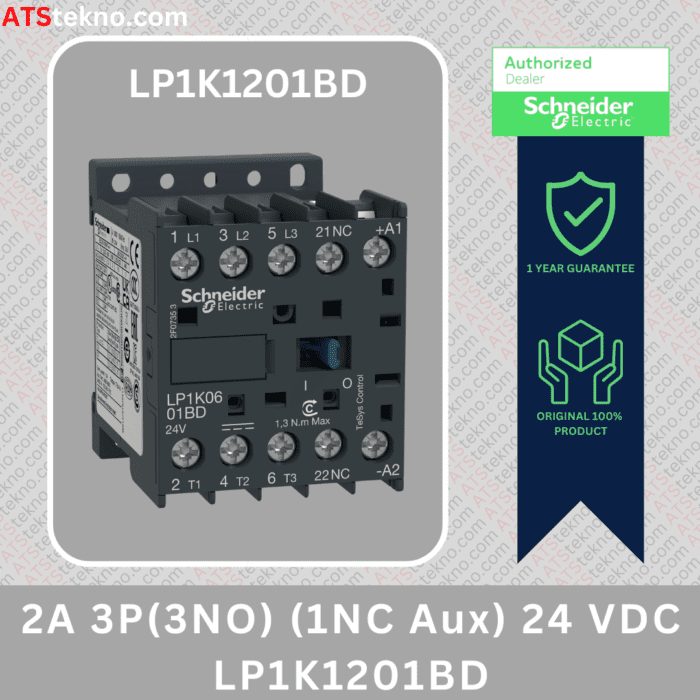

Schneider Contactor LP1K1201BD 12A 3P(3NO) (1NC Aux)  24 VDC

Rp364.877

Schneider Contactor LP1K1201BD 12A 3P(3NO) (1NC Aux)  24 VDC

Schneider Contactor LP1K1201BD 12A Main Spefication

• TeSys K range of product
• TeSys range
• Contactor product type
• LP1K device short name
• Resistive load & Motor control contactor application
• Utilisation category:
  • AC-3
  • AC-1
  • AC-4
• 3 Poles
• 3 NO pole contact composition
• Rated operational current:
  • 12 A (at <50 °C) at <= 440 V AC-3 for power circuit
  • 10 A (at <60 °C) at <= 440 V AC-3 for power circuit
  • 20 A (at <50 °C) at <= 690 V AC-1 for power circuit
  • 16 A (at <60 °C) at <= 690 V AC-1 for power circuit
• 1 NC auxiliary contact composition

Complementary

• Type instantaneous 1 NC auxiliary contacts type
• Control circuit voltage limits:
  • Operational: 0.8…1.15 Uc (at <50 °C)
  • Drop-out: 0.1…0.75 Uc (at <50 °C)
• Rated insulation voltage:
  • Power circuit: 600 V conforming to UL 508
  • Power circuit: 690 V conforming to IEC 60947-4-1
  • Signalling circuit: 690 V conforming to IEC 60947-4-1
  • Signalling circuit: 600 V conforming to UL 508
  • Power circuit: 600 V conforming to CSA C22.2 No 14
  • Signalling circuit: 600 V conforming to CSA C22.2 No 14
  • Signalling circuit: 690 V conforming to IEC 60947-5-1
• 8 kV rated impulse withstand voltage
• Overvoltage category III
• Plate & Rail mounting support
• Flame retardance:
  • V1 conforming to UL 94
  • Requirement 2 conforming to NF F 16-101
  • Requirement 2 conforming to NF F 16-102
• Tightening torque:
  • 1.3 N.m – on screw clamp terminals with screwdriver:
    • Philips No 2
    • Flat Ø 6 mm
    • Pozidriv No 2
• Rated operational voltage:
  • Power circuit: 690 V AC 50/60 Hz
  • Signalling circuit: 690 V AC 50/60 Hz
• Conventional free air thermal current:
  • 20 A (at 50 °C) for power circuit
  • 10 A (at 50 °C) for signalling circuit

Environment

• Irms rated making capacity:
  • 110 A AC for signalling circuit conforming to IEC 60947
  • 144 A AC for power circuit conforming to NF C 63-110
  • 144 A AC for power circuit conforming to IEC 60947
• Rated breaking capacity:
  • 110 A at 440 V conforming to IEC 60947
  • 80 A at 500 V conforming to IEC 60947
  • 70 A at 660…690 V conforming to IEC 60947
• Associated fuse rating:
  • 25 A gG at <= 440 V for power circuit
  • 25 A aM for power circuit
  • 10 A gG for signalling circuit conforming to IEC 60947
  • 10 A gG for signalling circuit conforming to VDE 0660
• 3 mOhm – Ith 20 A 50 Hz average impedance for power circuit
• 3 W (at 20 °C) inrush power in W
• Hold-in power consumption in 3 Wat 20 °C
• Operating time:
  • 30…40 ms coil energisation and NO closing
  • 10 ms coil de-energisation and NO opening
• Safety reliability level:
  • B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
  • B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
• 10 Mcycles mechanical durability
• 3600 cyc/h maximum operating rate
• 5 mA minimum switching current for signalling circuit
• 17 V minimum switching voltage for signalling circuit
• > 10 MOhm insulation resistance for signalling circuit
• Product certifications:
  • UL
  • CSA
  • UKCA
• -25…50 °C ambient air temperature for operation
• -50…80 °C ambient air temperature for storage
• -40…70 °C at Uc permissible ambient air temperature around the device
• 2000 m operating altitude without derating
