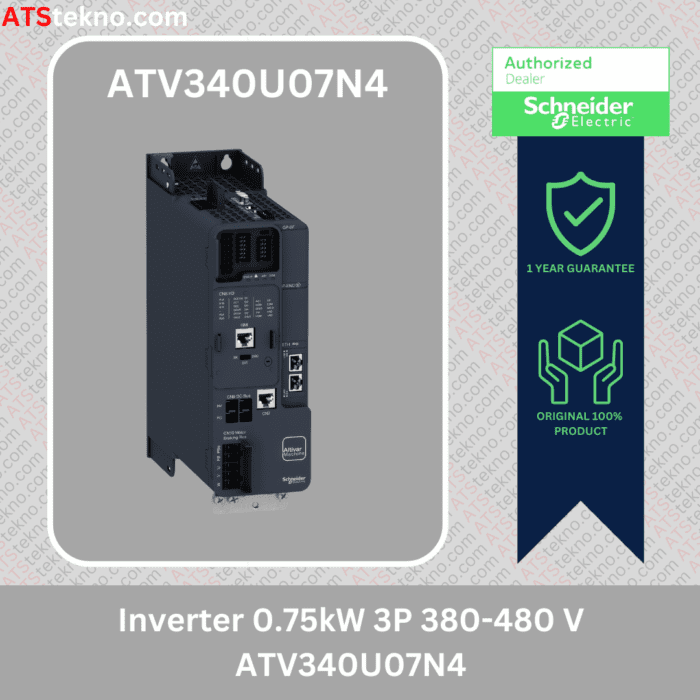

Schneider ATV340U07N4 Inverter 0.75kW 3P 380-480 V
Schneider ATV340U07N4 Inverter 0.75kW Main Specification
- Altivar Machine ATV340
- Variable speed drive product type
- Machine product specific application
- Standard version variant
- Cabinet mount Cabinet mount
- Communication port protocol:
- Option card Communication module:
- PROFINET
- DeviceNet
- CANopen,
- EtherCAT
- 3 phases network
- 50…60 Hz supply frequency at +/- 5 %
- 380…480 V rated supply voltage at – 15…10 %
- 2.2Â A nominal output current
- Motor power kW:
- 1.1 kW for normal duty
- 0.75 kW for heavy duty
- Motor power hp:
- 1.5 hp for normal duty
- 1 hp for heavy duty
Schneider ATV340U07N4 Inverter 0.75kW
- Class C3 EMC filter integrated
- IP20 conforming to IP degree of protection
- 5 discrete input number
- Discrete input type:
- PTI programmable as pulse input: 0…30 kHz, 24 V DC (30 V)
- DI1…DI5 programmable, 24 V DC (30 V), impedance: 3.5 kOhm
- 16 preset speeds
- 2.0 discrete output number
- Programmable output DQ1, DQ2 30 V DC 100 mA
- 2 analogue input number
- Analogue input type:
- AI1 software-configurable current: 0…20 mA, impedance: 250 Ohm, resolution 12 bits
- AI1 software-configurable temperature probe or water level sensor
- AI1 software-configurable voltage: 0…10 V DC, impedance: 31.5 kOhm, resolution 12 bits
- AI2 software-configurable voltage: – 10…10 V DC, impedance: 31.5 kOhm, resolution 12 bits
- 2 analogue output number
- Analogue output type:
- Software-configurable voltage AQ1: 0…10 V DC impedance 470 Ohm, resolution 10 bits
- Software-configurable current AQ1: 0…20 mA impedance 500 Ohm, resolution 10 bits
- 2 relay output number
- Output voltage <= power supply voltage
- Relay output type:
- R1A
- R1C electrical durability 100000 cycles
- R2A
- R2C electrical durability 100000 cycles
- Maximum switching current:
- Relay output R1C on:
- Resistive load, cos phi = 1: 3 A at 250 V AC
- Resistive load, cos phi = 1: 3 A at 30 V DC
- Inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC
- Inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC
- Relay output R2C on:
- Resistive load, cos phi = 1: 5 A at 250 V AC
- Resistive load, cos phi = 1: 5 A at 30 V DC
- Inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC
- Inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC
Environment
- Minimum switching current:
- Relay output R1B: 5 mA at 24 V DC
- Relay output R2C: 5 mA at 24 V DC
- 2-wire RS 485 physical interface
- 1 RJ45 connector
- Slave Modbus RTU method of access
- Transmission rate:
- 4.8 kbit/s
- 9.6 kbit/s
- 19.2 kbit/s
- 38.4 kbit/s
- RTU transmission frame
- 1-127 number of addresses
- 8 bits data format, configurable odd, even or no parity
- No impedance of polarization
- 4 quadrant operation possible
- Asynchronous motor control profile:
- Optimized torque mode
- Variable torque standard
- Constant torque standard
- Synchronous motor control profile:
- Permanent magnet motor
- Reluctance motor
- 0.599 kHz maximum output frequency
- Acceleration and deceleration ramps
- Linear adjustable separately from 0.01…9999 s
- S, U or customized
- Motor slip compensation:
- Not available in permanent magnet motor law
- Adjustable
- Can be suppressed
- Automatic whatever the load
- Switching frequency:
- 2…16 kHz adjustable
- 4…16 kHz with derating factor
- 4 kHz nominal switching frequency
- Braking to standstill By DC injection
- Brake chopper integrated
- Line current:
- 2.6 A at 380 V (normal duty)
- 2.1 A at 480 V (normal duty)
- 3.4 A at 380 V (heavy duty)
- 2.6 A at 480 V (heavy duty)
- Line current:
- 2.6 A at 480 V without line choke (heavy duty)
- 2.6 A at 380 V with external line choke (normal duty)
- 2.1 A at 480 V with external line choke (normal duty)
- 1.9 A at 380 V with external line choke (heavy duty)
- 1.6 A at 480 V with external line choke (heavy duty)
- 3.4 A at 380 V without line choke (heavy duty)
Complementary
- 3.4Â A maximum input current
- 480 V maximum output voltage
- Apparent power:
- 2.2 kVA at 480 V (normal duty)
- 2.2 kVA at 480 V (heavy duty)
- Maximum transient current:
- 3.1 A during 60 s (normal duty)
- 3.3 A during 60 s (heavy duty)
- 3.8 A during 2 s (normal duty)
- 4 A during 2 s (heavy duty)
- Screw terminal, clamping capacity electrical connection:
- 1.5…4 mm² for line side
- 4…6 mm² for DC bus
- 1.5…4 mm² for motor
- 0.2…2.5 mm² for control
- 2.2Â A base load current at high overload
- 50Â kA prospective line Isc
- 2.8Â A base load current at low overload
- Power dissipation in W:
- Natural convection: 28 W at 380 V, switching frequency 4 kHz (heavy duty)
- Forced convection: 28 W at 380 V, switching frequency 4 kHz (heavy duty)
- Natural convection: 33 W at 380 V, switching frequency 4 kHz (normal duty)
- Forced convection: 33 W at 380 V, switching frequency 4 kHz (normal duty)
- Electrical connection:
- Line side: screw terminal 1.5…4 mm²/AWG 14…AWG 12
- DC bus: screw terminal 4…6 mm²/AWG 12…AWG 10
- Motor: screw terminal 1.5…4 mm²/AWG 14…AWG 12
- Control: screw terminal 0.2…2.5 mm²/AWG 24…AWG 12
- Continuous output current:
- 2.2 A at 4 kHz for heavy duty
- 2.8 A at 4 kHz for normal duty
Variable Speed Drive 380 – 480 V ATV340 Modular Type 3P – 0,75kW
