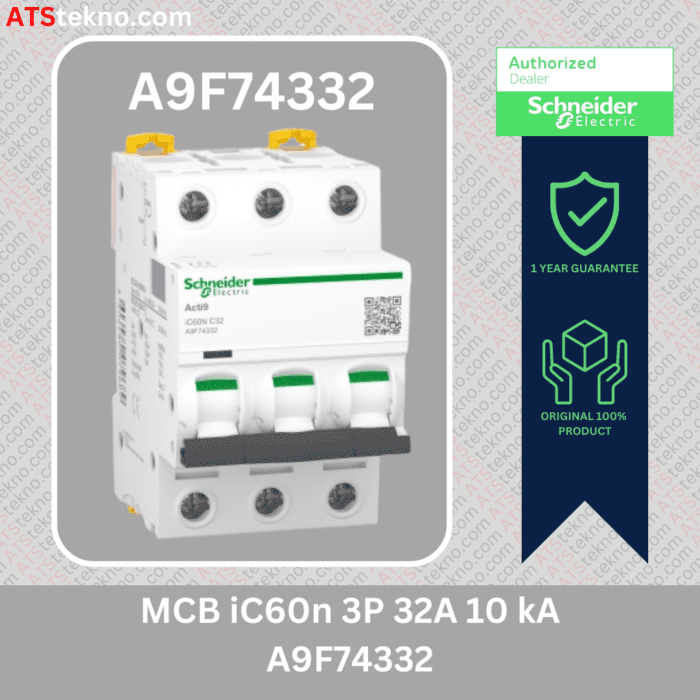

MCB iC60N 3P 32A A9F74332 Schneider

Rp1.756.177

Main Specification

• 32A rated current
• AC & DC network type
• MCB iC60N 3P 32A breaking capacity:
  • 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
  • 36 kA Icu at 12…60 V AC 50/60 Hz conforming to EN/IEC 60947-2
  • 10 kA Icu at 380…415 V AC 50/60 Hz conforming to EN/IEC 60947-2
  • 20 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2
  • 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
  • 36 kA Icu at 100…133 V AC 50/60 Hz conforming to EN/IEC 60947-2
  • 10 kA Icu at <= 180 V DC conforming to EN/IEC 60947-2
• Utilisation category:
  • Category A conforming to EN 60947-2
  • Category A conforming to IEC 60947-2
• Suitability for isolation conforming to:
  • EN 60898-1
  • EN 60947-2
  • IEC 60898-1
  • IEC 60947-2
• Standards:
  • EN 60898-1
  • IEC 60947-2
  • EN 60947-2
  • IEC 60898-1

Complementary

• 50/60 Hz network frequency
• 8 x In +/- 20 %
• Rated service breaking capacity:
  • 15 kA 75 % conforming to EN 60947-2 – 220…240 V AC 50/60 Hz
  • 7.5 kA 75 % conforming to EN 60947-2 – 380…415 V AC 50/60 Hz
  • 4.5 kA 75 % conforming to EN 60947-2 – 440 V AC 50/60 Hz
  • 15 kA 75 % conforming to IEC 60947-2 – 220…240 V AC 50/60 Hz
  • 7.5 kA 75 % conforming to IEC 60947-2 – 380…415 V AC 50/60 Hz
  • 4.5 kA 75 % conforming to IEC 60947-2 – 440 V AC 50/60 Hz
  • 27 kA 75 % conforming to IEC 60947-2 – 12…133 V AC 50/60 Hz
  • 27 kA 75 % conforming to EN 60947-2 – 12…133 V AC 50/60 Hz
  • 6000 A 100 % conforming to EN 60898-1 – 400 V AC 50/60 Hz
  • 6000 A 100 % conforming to IEC 60898-1 – 400 V AC 50/60 Hz
  • 10 kA 100 % conforming to IEC 60947-2 – 125…180 V DC
  • 10 kA 100 % conforming to EN 60947-2 – 125…180 V DC
• Limitation class:
  • 3 conforming to EN 60898-1
  • 3 conforming to IEC 60898-1
• Rated insulation voltage:
  • 500 V AC 50/60 Hz conforming to EN 60947-2
  • 500 V AC 50/60 Hz conforming to IEC 60947-2
• Rated impulse withstand voltage:
  • 6 kV conforming to EN 60947-2
  • 6 kV conforming to IEC 60947-2
• Contact position indicator
• Toggle control type
• Trip indicator local signalling
• Fixed mounting mode
• DIN rail mounting support
• Top or bottom comb busbar and distribution block compatibility
• 6, 9 mm pitches
• 20000 cycles mechanical durability
• 10000 cycles electrical durability
• Connections – terminals:
  • Single terminal (top or bottom) 1…35 mm² rigid
  • Single terminal (top or bottom) 1…25 mm² flexible
• 14 mm for top or bottom connection wire stripping length
• 3.5 N.m top or bottom tightening torque
• Separate block earth-leakage protection

Environment

• IP degree of protection:
  • IP20 conforming to IEC 60529
  • IP20 conforming to EN 60529
• Pollution degree:
  • 3 conforming to EN 60947-2
  • 3 conforming to IEC 60947-2
• Category IV overvoltage
• 95 % relative humidity 55 °C
• Ambient air temperature for operation at -35 to 70 °C
• Ambient air temperature for storage at -40 to 85 °C

Stock Available

MCB iC60N 3P 32A A9F74332 Schneider

MCB iC60N 3P 32A

SKU: A9F74332 Categories: MCB, MCB iC60, MCB iC60N
