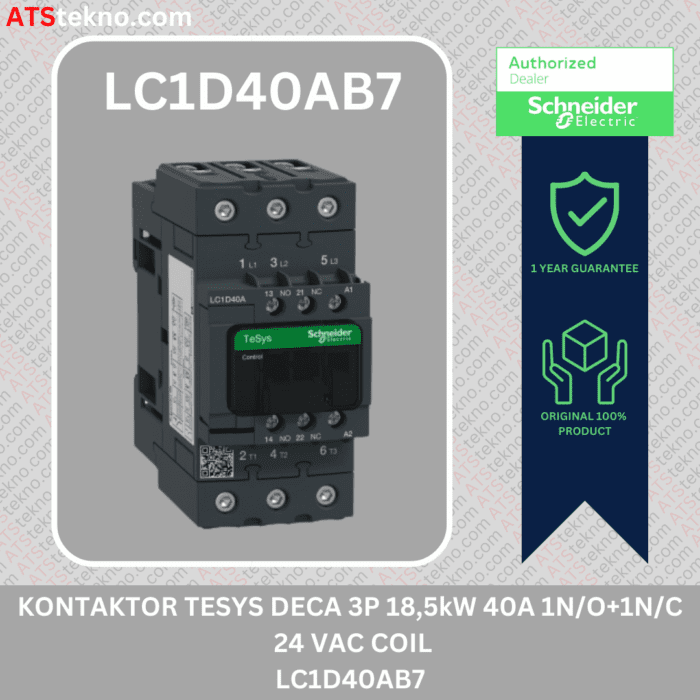

Kontaktor Schneider LC1D40AB7 40 Ampere 24VAC 1 No / 1 NC – LC1D40AB7

Rp1.149.538

Kontaktor Schneider LC1D40AB7 40 Ampere 24VAC 1 No / 1 NC – LC1D40AB7

Kontaktor Schneider LC1D40AB7 40 Ampere 24VAC 1 NO / 1 NC Main

• Range:
  • TeSys
  • TeSys Deca
• Contactor application:
  • Motor control
  • Resistive load
• Utilisation category:
  • AC-4
  • AC-1
  • AC-3
  • AC-3e
• 3 Poles
• [Ue] rated operational voltage:
  • Power circuit: <= 690 V AC 25…400 Hz
  • Power circuit: <= 300 V DC
• [Ie] rated operational current:
  • 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
  • 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
  • 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
• 24 V AC 50/60 Hz [Uc] control circuit voltage

Kontaktor Schneider

• Motor power (kW):
  • 18.5 kW at 380…400 V AC 50/60 Hz (AC-3)
  • 11 kW at 220…230 V AC 50/60 Hz (AC-3)
  • 22 kW at 415…440 V AC 50/60 Hz (AC-3)
  • 22 kW at 500 V AC 50/60 Hz (AC-3)
  • 30 kW at 660…690 V AC 50/60 Hz (AC-3)
  • 9 kW at 400 V AC 50/60 Hz (AC-4)
  • 18.5 kW at 380…400 V AC 50/60 Hz (AC-3e)
  • 11 kW at 220…230 V AC 50/60 Hz (AC-3e)
  • 22 kW at 415…440 V AC 50/60 Hz (AC-3e)
  • 22 kW at 500 V AC 50/60 Hz (AC-3e)
  • 30 kW at 660…690 V AC 50/60 Hz (AC-3e)
• Motor power (hp):
  • 5 hp at 230/240 V AC 50/60 Hz for 1 phase motors
  • 10 hp at 230/240 V AC 50/60 Hz for 3 phases motors
  • 30 hp at 575/600 V AC 50/60 Hz for 3 phases motors
  • 10 hp at 200/208 V AC 50/60 Hz for 3 phases motors
  • 3 hp at 115 V AC 50/60 Hz for 1 phase motors
  • 30 hp at 460/480 V AC 50/60 Hz for 3 phases motors
• 3 NO contact composition
• M2 Contact compatibility
• With protective cover
• [Ith] conventional free air thermal current:
  • 10 A (at 60 °C) for signalling circuit
  • 60 A (at 60 °C) for power circuit
• Irms rated making capacity:
  • 140 A AC for signalling circuit conforming to IEC 60947-5-1
  • 250 A DC for signalling circuit conforming to IEC 60947-5-1
  • 800 A at 440 V for power circuit conforming to IEC 60947
• 800 A at 440 V for power circuit conforming to IEC 60947 Rated breaking capacity

Kontaktor Schneider LC1D40AB7 40 Ampere 24VAC 1 NO / 1 NC Complementary

• [Icw] rated short-time withstand current:
  • 320 A 40 °C – 10 s for power circuit
  • 720 A 40 °C – 1 s for power circuit
  • 72 A 40 °C – 10 min for power circuit
  • 165 A 40 °C – 1 min for power circuit
  • 100 A – 1 s for signalling circuit
  • 120 A – 500 ms for signalling circuit
  • 140 A – 100 ms for signalling circuit
• Associated fuse rating:
  • 10 A gG for signalling circuit conforming to IEC 60947-5-1
  • 80 A gG at <= 690 V coordination type 1 for power circuit
  • 80 A gG at <= 690 V coordination type 2 for power circuit
• Average impedance 1.5 mOhm – Ith 60 A 50 Hz for power circuit
• Power dissipation per pole:
  • 2.4 W AC-3
  • 5.4 W AC-1
  • 2.4 W AC-3e
• [Ui] rated insulation voltage:
  • Power circuit: 600 V CSA certified
  • Power circuit: 600 V UL certified
  • Signalling circuit:
    • 690 V conforming to IEC 60947-1
    • 600 V CSA certified
    • 600 V UL certified
  • Power circuit:
    • 690 V conforming to IEC 60947-4-1
• Overvoltage category III
• Pollution degree 3
• [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
• Safety reliability level:
  • B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
  • B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
• Mechanical durability 6 Mcycles
• Control circuit type AC at 50/60 Hz standard
• Coil technology Without built-in suppressor module
• Control circuit voltage limits:
  • 0.3…0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz
  • 0.8…1.1 Uc (-40…60 °C):operational AC 50 Hz
  • 0.85…1.1 Uc (-40…60 °C):operational AC 60 Hz
  • 1…1.1 Uc (60…70 °C):operational AC 50/60 Hz

• Inrush power in VA:
  • 140 VA 60 Hz cos phi 0.75 (at 20 °C)
  • 160 VA 50 Hz cos phi 0.75 (at 20 °C)
• Hold-in power consumption in VA:
  • 13 VA 60 Hz cos phi 0.3 (at 20 °C)
  • 15 VA 50 Hz cos phi 0.3 (at 20 °C)
• Heat dissipation 4…5 W at 50/60 Hz

Environment

• Operating time
  • 4…19 ms opening
  • 12…26 ms closing
• Maximum operating rate 3600 cyc/h 60 °C
• Connections – terminals:
  • Control circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible with cable end
  • Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible without cable end
  • Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible without cable end
  • Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible with cable end
  • Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: solid without cable end
  • Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: solid without cable end
  • Power circuit: screw connection 1 1…35 mm² – cable stiffness: flexible without cable end
  • Power circuit: screw connection 2 1…25 mm² – cable stiffness: flexible without cable end
  • Power circuit: screw connection 1 1…35 mm² – cable stiffness: flexible with cable end
  • Power circuit: screw connection 2 1…25 mm² – cable stiffness: flexible with cable end
  • Power circuit: screw connection 1 1…35 mm² – cable stiffness: solid without cable end
  • Power circuit: screw connection 2 1…25 mm² – cable stiffness: solid without cable end
• Tightening torque:
  • Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver flat Ø 6 mm
  • Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver Philips No 2
  • Power circuit: 8 N.m – on EverLink BTR screw connectors – cable 25…35 mm² hexagonal screw head 4
  • mm
  • Power circuit: 5 N.m – on EverLink BTR screw connectors – cable 1…25 mm² hexagonal screw head 4 mm
  • Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver pozidriv No 2
  • Power circuit: 2.5 N.m – on screw clamp terminals – with screwdriver pozidriv No 2
• Auxiliary contact composition 1 NO + 1 NC
• Auxiliary contacts type
  • Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
  • type mirror contact 1 NC conforming to IEC 60947-4-1

Warranty

• 12 months Contractual warranty
