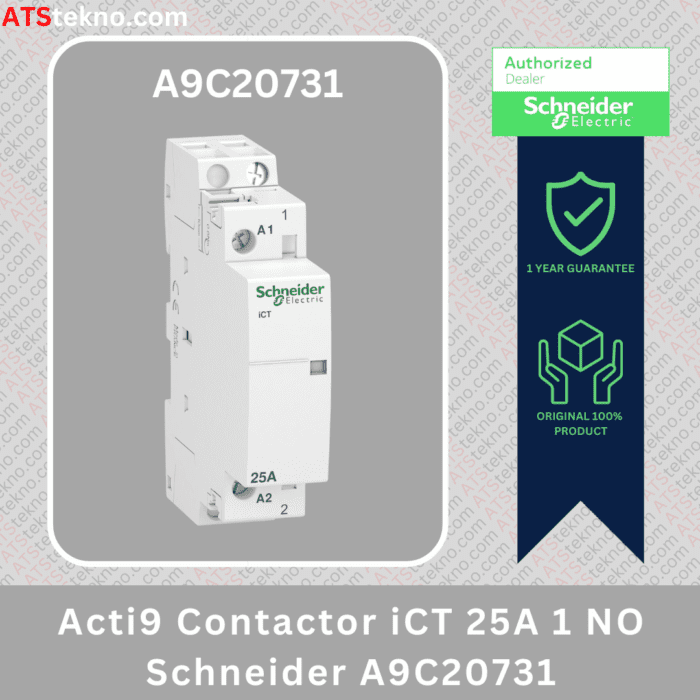

Acti9 Contactor iCT 25A 1 NO Schneider A9C20731
Rp351.100 Rp165.100 53% off!
Acti9 Contactor iCT 25A 1 NO Schneider A9C20731, with:
- Acti9 Contactor iCT 25A AC-7A & 8.5 A AC-7B rated operational current
- 1 NO pole contact composition
- Control circuit voltage at 230…240 V AC 50 Hz
- Network frequency at 50 Hz
- Rated operational voltage at 250 V AC 50 Hz
- Maximum power at 1.2 W at 250 V AC
- Rated insulation voltage at 500 V AC 50/60 Hz
- Rated impulse withstand voltage at 4 kV
- Maintained, control signal type
- Switching frequency at 100 switching operations/day
- Hold-in power consumption at 2.7 VA
- Inrush power at 9.2 VA
- Clip-on mounting mode
- 35 mm symmetrical DIN rail mounting support
- 1000000 cycles of mechanical durability
- Electrical durability at:
- 100000 cycles IEC/EN 61095 25 A 50 Hz AC-7A
- 30000 cycles IEC/EN 61095 8.5 A 50 Hz AC-7B
- 30000 cycles IEC/EN 61095 50 Hz AC-7C
- 100000 cycles EN/IEC 60947-4-1 50 Hz AC-1
- 30000 cycles EN/IEC 60947-4-1 50 Hz AC-3
- 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a
- 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b
- Connections – terminals:
- Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid
- Power circuit: tunnel type terminals1 cable(s) 1…4 mm² flexible
- Power circuit: tunnel type terminals1 cable(s) 1.5…6 mm² rigid
- Control circuit: tunnel type terminals1 cable(s) 1.5…2.5 mm² rigid
- Control circuit: tunnel type terminals2 cable(s) 1.5…2.5 mm² flexible
- Tightening torque:
- Control circuit: 0.8 N.m
- Power circuit: 0.8 N.m
- IEC/EN 61095 standard
- Noise level at 30 dB
- Heat dissipation at 0.9 W at 50/60 Hz
- IP20 from IP degree of protection
- Tropicalisation:
- 2 conforming to EN 60947-4-1
- 2 conforming to EN 61095
- 2 conforming to IEC 1095
- 95 % relative humidity at 55 °C
- Ambient air temperature for operation at -5 to 60 °C
- Ambient air temperature for storage at -40 to 70 °C

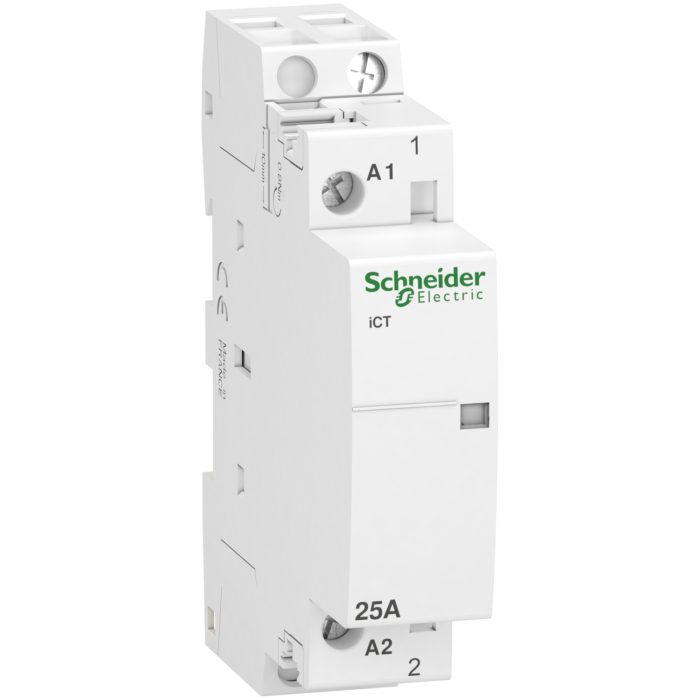

Acti 9 Kontaktor ?DIN? iCT 25 Ampere || 240 Volt 1 NO
Out of stock
