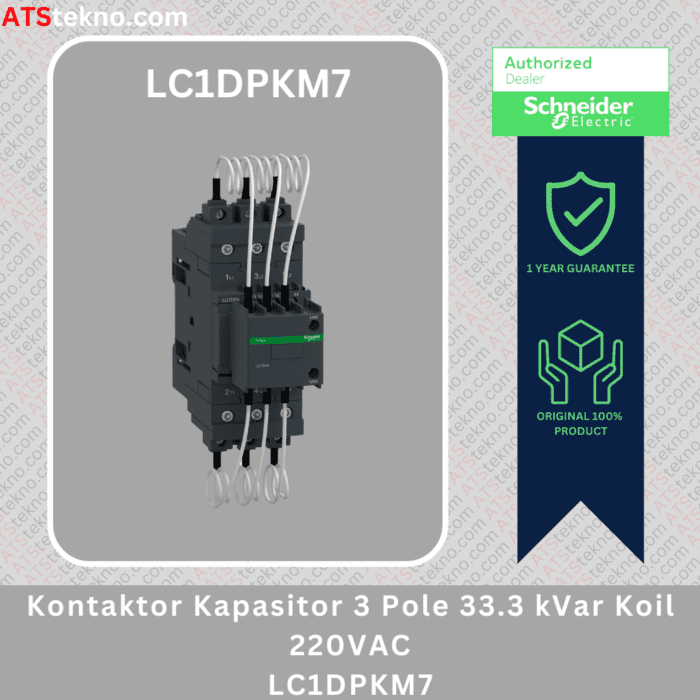

Kontaktor Kapasitor Schneider LC1DPKM7 3 Pole 33.3 kVar Koil 220VAC

Rp2.469.676

Kontaktor Kapasitor Schneider LC1DPKM7 3 Pole 33.3 kVar Koil 220VAC

Kontaktor Kapasitor Schneider LC1DPKM7 3 Pole 33.3 kVar Koil 220VAC Main

• Product name:
  • TeSys LC1D.K
  • TeSys Deca
• Product or component type Capacitor duty contactor
• Device short name LC1DPK
• Device application Control
• Contactor application Power factor correction
• Utilisation category AC-6b
• 3 Poles
• 3 NO contact composition
• Device location in system:
  • Inside delta interruption
  • Line interruption
• [Ue] rated operational voltage Power circuit: 690 V AC 50/60 Hz
• Reactive power rating:
  • 17 kvar at 230 V AC 50 Hz 60 °C
    30 kvar at 400 V AC 50 Hz 60 °C
    32 kvar at 440 V AC 50 Hz 60 °C
    50 kvar at 690 V AC 50 Hz 60 °C
    16.5 kvar at 230 V AC 60 Hz 60 °C
    33.3 kvar at 460 V AC 60 Hz 60 °C
    40 kvar at 575 V AC 60 Hz 60 °C
• Control circuit type AC at 50/60 Hz
• [Uc] control circuit voltage 220 V AC 50/60 Hz
• Auxiliary contact composition 1 NO + 2 NC instantaneous
• Electrical durability:
  • 300000 cycles at Ue 400 V
  • 200000 cycles at Ue 690 V
• Mounting support:
  • DIN rail
  • Plate
• Standards:
  • EN/IEC 60947-1
  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
  • IEC 60335-1
• Product certifications:
  • IECEE CB Scheme
  • UL
  • CSA
  • UKCA
• Tightening torque:
  • Control circuit: 1.7 N.m – on screw clamp terminals
  • Power circuit: 5 N.m – on EverLink BTR screw connectors – cable 1…25 mm²
  • Power circuit: 8 N.m – on EverLink BTR screw connectors – cable 35 mm²
• Maximum operating rate 240 cyc/h

Kontaktor Kapasitor Schneider LC1DPKM7 3 Pole 33.3 kVar Koil 220VAC Complementary

• Auxiliary contacts type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1

Environment

• IP degree of protection IP20 front face conforming to IEC 60529
• Ambient air temperature for operation -5 to 60 °C
• Ambient air temperature for storage -60 to 80 °C
• Operating altitude 0-3000 m

Packing Units

• PCE Package Unit Type
• 1 Number of Units in Package
• Height 7 cm
• Width 20 cm
• Length 23 cm
• Weight 1.108 kg

Out of stock

SKU: LC1DPKM7 Categories: Contactor, Kontaktor
