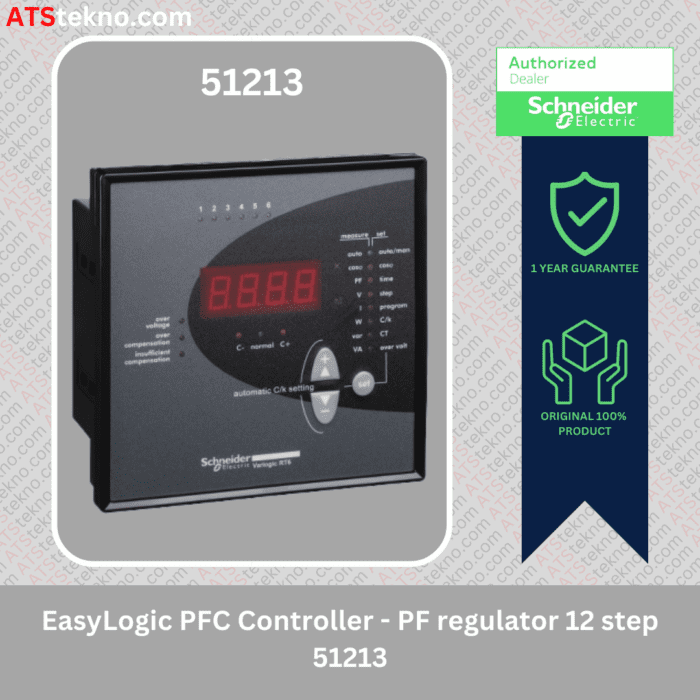

Varlogic PF Controller RT12 440V Capacitor Regulator Schneider 51213

Rp6.608.998

Main Specification:

• Product name EasyLogic PFC Controller
• RT12 device short name
• Power factor controller product type

Complementary

• 12 step output contacts
• 320…460 V AC 50/60 Hz rated supply voltage
• 50 mA measurement current
• Manual operating mode
• Display type:
  • 7 segments LED
  • 4-digit
• Power factor measurement
• 5 last alarms function
• Input type:
  • Phase to phase
  • Current input CT…10000/5 A
• Output type:
  • Free outputs contacts current: 0.3 A 110 V DC
  • Free outputs contacts current: 0.6 A 60 V DC
  • Free outputs contacts current: 1 A 400 V AC 50/60 Hz
  • Free outputs contacts current: 2 A 24 V DC
  • Free outputs contacts current: 2 A 250 V AC 50/60 Hz
  • Free outputs contacts current: 5 A 120 V AC 50/60 Hz
• Target cos phi: 0.85 inductive…1 type of setting
• +/- 2 % measurement accuracy
• Time delay range at:
  • 10…1800 s
  • 10…1800 s (on reconnection)
• Step sequences:
  • 1.1.2.4
  • 1.2.2.2
  • 1.2.4.8
  • 1.1.2.2
  • 1.1.2.3
  • 1.2.3.3
  • 1.2.3.4
  • 1.2.4.4
  • 1.1.1.1
  • Linear
  • 1.2.3.6
• Mounting location:
  • In cabinet
  • Panel

Environment

• Standards:
  • EN 61010-1
  • IEC 61326
  • IEC 61000-6-2
  • IEC 61000-6-4
• IP degree of protection:
  • Rear face: IP20
  • Front face: IP41 conforming to IEC 60429
• Ambient air temperature for operation at 0…55 °C

Stock Available

Varlogic PF Controller RT12 440V Capacitor Regulator Schneider

Varlogic PF Controller RT12

SKU: 51213 Categories: Capacitor, Capacitor BLRCH, Uncategorized
