Schneider XALD324 Control Station With 3 Flush Button

Rp927.960

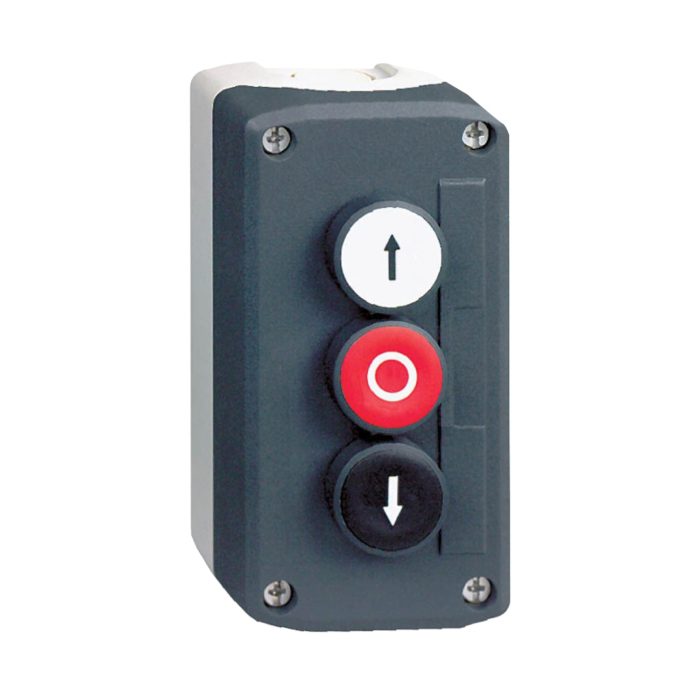

Schneider XALD324 Control Station With 3 Flush Button: Up Arrow, O, Down Arrow 22mm

Schneider XALD324 Control Station Specification

• Harmony XALD range of product
• Complete control station product or component type
• XALD device short name
• For XB5 Ø 22 mm control and signalling units product destination
• Start-Stop function control station application
• Light grey (RAL 7035) colour of base of enclosure
• Dark grey (RAL 7016) colour of cover
• Polycarbonate material
• 3 flush push-buttons operator profile
• White ”up arrow” 1 NO – red ”O” 1 NC – black ”down arrow” 1 NO operators description
• Control station composition 3 flush push-button:
  • Red 1 NC O marking
  • Black 1 NO, white down arrow marking
  • White 1 NO, black up arrow marking
• Marking location on push-button
• Slow-break contact operation

Complementary

• Cable entry:
  • 2 knock-outs for cable entry, clamping capacity: 14 mm
  • 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm
• 0.233 kg net weight
• 7000000 Pa at 55 °C, distance : 0.1 m resistance to high pressure washer
• Colour of marking:
  • White marking when green, red or black caps
  • Black marking when white caps
• With positive opening conforming to EN/IEC 60947-5-1 appendix K
• Operating travel:
  • 1.5 mm (NC changing electrical state)
  • 2.6 mm (NO changing electrical state)
  • 4.3 mm (total travel)
• Operating force:
  • 3.5 N NC changing electrical state
  • 3.8 N NO changing electrical state
• 10000000 cycles mechanical durability
• Connections – terminals:
  • Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
  • Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1
• 0.8…1.2 N.m tightening torque conforming to EN/IEC 60947-1
• Shape of screw head:
  • Cross compatible with Philips no 1 screwdriver
  • Cross compatible with pozidriv No 1 screwdriver
  • Slotted compatible with flat Ø 4 mm screwdriver
  • Slotted compatible with flat Ø 5.5 mm screwdriver
• Silver alloy (Ag/Ni) contacts material

Environment

• 10 A cartridge fuse type gG short-circuit protection conforming to EN/IEC 60947-5-1
• 10 A conventional free air thermal current conforming to EN/IEC 60947-5-1
• 600 V (pollution degree 3) rated insulation voltage conforming to EN/IEC 60947-1
• 6 kV rated impulse withstand voltage conforming to EN/IEC 60947-1
• Rated operational current:
  • 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
  • 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
  • 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
  • 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
  • 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
  • 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
• Electrical durability:
  • 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
• Electrical reliability:
  • Λ < 10exp(-6) at 5 V, 1 mA conforming to EN/IEC 60947-5-4
  • Λ < 10exp(-8) at 17 V, 5 mA conforming to EN/IEC 60947-5-4

Out of stock

SKU: XALD324 Category: Uncategorized
