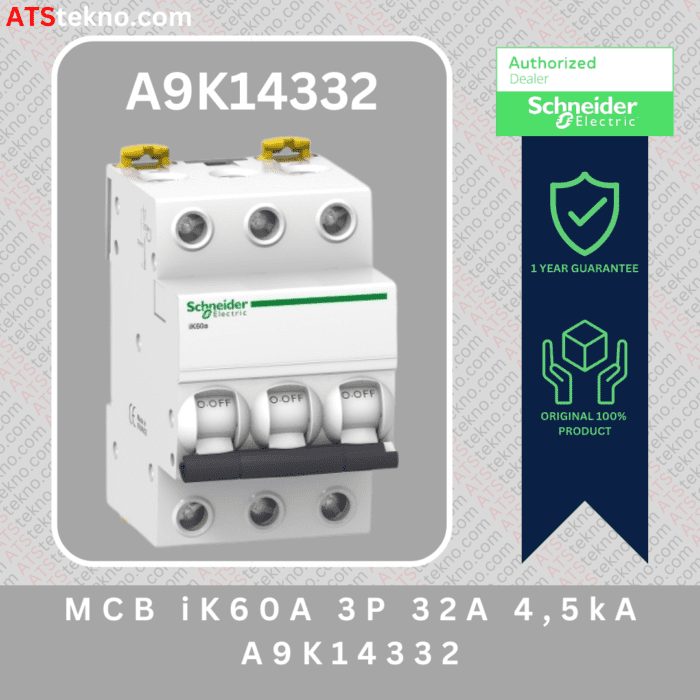

Schneider MCB iK60A A9K14332 3 Poles 32 Ampere 6kA
| SKU | A9K14332 |
|---|---|
| Brand | Schneider |
| Categories | MCB, MCB iK60, MCB iK60A |
| Weight | 0,3 kg |
| Dimensions | 7,9 × 5,4 × 8,5 cm |
| Pole | |
| Ampere | |
| Warna | |
| Datasheet PDF | www.se.com/id/id/product/download-pdf/A9K14332 |
Rp1.641.194
Main Specification
- Distribution Device application
- Miniature circuit-breaker Product type
- 3 Poles
- [In] rated current 32 Ampere at 30 °C
- Network type AC
- Thermal-magnetic Trip unit technology
- Breaking capacity 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
- Suitability for isolation conforming to EN/IEC 60898-1
- Standards EN/IEC 60898-1
- SNI certifications
- [Ui] rated insulation voltage 440 V AC 50/60 Hz conforming to EN/IEC 60898-1
- [Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60898-1
- Toggle Control type
- ON/OFF indication Local signalling
- Clip-on mounting mode
- DIN rail Mounting support
- 2 of 9 mm pitches
- 20000 cycles of Mechanical durability
- 10000 cycles of Electrical durability
- Padlocking device locking options
- Connections – terminals
- Tunnel type terminal (top or bottom) 1…35 mm² rigid
- Tunnel type terminal (top or bottom) 1…25 mm² flexible
- Wire stripping length 14 mm for top or bottom connection
- Tightening torque 3.5 N.m top or bottom
- Without Earth-leakage protection
- Contractual warranty 12 months
Stock Available
It has a double clip for dismounting with comb busbar in place. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 6 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 85mm x (D) 78.5mm. The weight is 300g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C.
