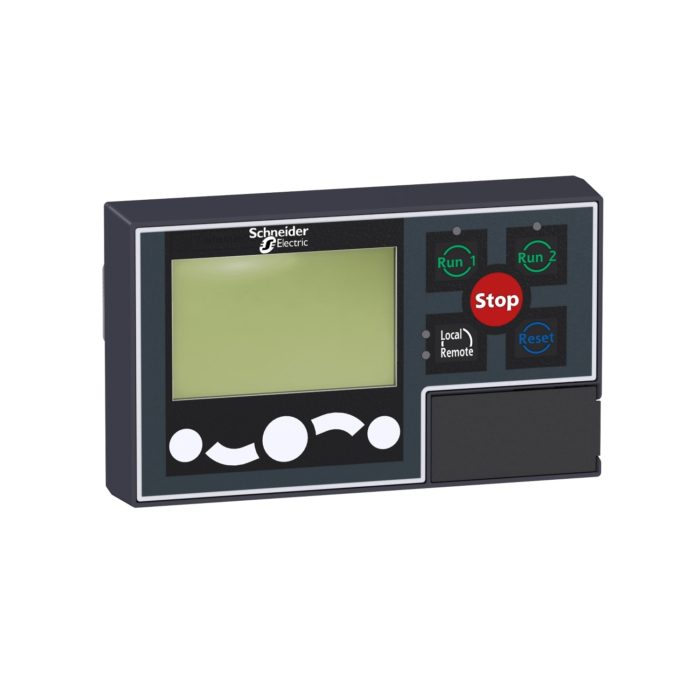

Schneider LTMCU Operator Control Unit For LTM R Controller

Rp6.381.390

Main Specification

• TeSys range
• LTMCU device short name
• Operator control unit product type
• LTMR motor controller range compatibility
• Backlit LCD display type
• 4 LEDs local signalling
• 10 push-button local control
• Device connection:
  • Connection to a LTM R controller, RJ45 connector on rear
  • Connection to a PC, RJ45 connector on front

Complementary

• Via the controller supply
• 140 mA maximum supply current
• 1 W power dissipation
• Standards
  • UL 60947-4-1A
  • CSA C22.2 No 60947-4-1
  • EN/IEC 61131-2
• Product certifications:
  • C-Tick
  • EAC
  • CSA
  • NOM
  • UL
  • CE
• Electromagnetic compatibility:
  • Electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2
  • Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3
  • Conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6
  • Surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5
  • Fast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4
• IP degree of protection:
  • IP54 (front) conforming to EN/IEC 60947-4-1
  • IP20 (rear) conforming to EN/IEC 60947-4-1
• Flush-mounted mounting mode

Environment

• -20…60 °C ambient air temperature for operation
• -40…80 °C ambient air temperature for storage
• 15…95 % relative humidity
• TC 12 humidity cycles at 55 °C protective treatment conforming to EN/IEC 60068-2-30
• Mechanical robustness:
  • Shocks: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27
  • Vibrations: 4 Gn, 5…300 Hz conforming to EN/IEC 60068-2-6
• 650 °C fire resistance conforming to EN/IEC 60947-1
• V2 flame retardance conforming to UL 94

Out of stock

Schneider LTMCU Operator Control Unit For LTM R Controller TeSys T

Schneider LTMCU Operator Control Unit

SKU: LTMCU Category: Uncategorized
