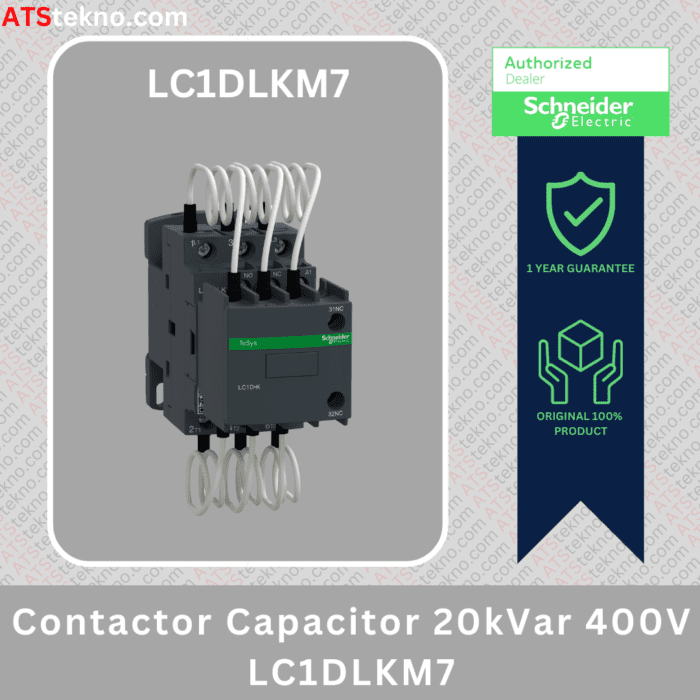

Schneider LC1DLKM7 Contactor Capacitor 20kVar 400V

Rp1.449.804

Main Specification

• Range:
  • TeSys
  • TeSys Deca
• Product name:
  • TeSys LC1D.K
  • TeSys Deca
• Capacitor duty contactor
• LC1DLK device short name
• Control device application
• Power factor correction contactor application
• AC-6b utilisation category
• 3 Poles
• 3 NO power pole contact composition
• Device location in system:
  • Line interruption
  • Inside delta interruption
• Power circuit: 690 V AC 50/60 Hz rated operational voltage
• Reactive power rating:
  • 11 kvar at 230 V AC 50 Hz 60 °C
  • 20 kvar at 400 V AC 50 Hz 60 °C
  • 21 kvar at 440 V AC 50 Hz 60 °C
  • 33 kvar at 690 V AC 50 Hz 60 °C
• AC at 50/60 Hz control circuit type
• 220 V AC 50/60 Hz control circuit voltage
• 1 NO + 2 NC instantaneous auxiliary contact composition
• Electrical durability:
  • 300000 cycles at Ue 400 V
  • 200000 cycles at Ue 690 V
• DIN rail & Plate mounting support
• Standards:
  • EN/IEC 60947-1
  • EN/IEC 60947-4-1
  • IEC 60335-1
• Product certifications:
  • IECEE CB Scheme
  • UKCA
• Screw clamp terminals connections:
  • 1 1…4 mm² – cable stiffness: solid
  • 2 1…4 mm² – cable stiffness: solid
  • 1 1…4 mm² – cable stiffness: flexible without cable end
  • 2 1…4 mm² – cable stiffness: flexible without cable end
  • 1 1…4 mm² – cable stiffness: flexible with cable end
  • 2 1…2.5 mm² – cable stiffness: flexible with cable end
• Power circuit, screw clamp terminals connection:
  • 1 2.5…16 mm² – cable stiffness: solid
  • 2 2.5…6 mm² – cable stiffness: solid
  • 1 1.5…10 mm² – cable stiffness: flexible without cable end
  • 2 1.5…6 mm² – cable stiffness: flexible without cable end
  • 1 1…10 mm² – cable stiffness: flexible with cable end
  • 2 1…4 mm² – cable stiffness: flexible with cable end
• Tightening torque:
  • Control circuit: 1.7 N.m – on screw clamp terminals
  • Power circuit: 2.5 N.m – on screw clamp terminals
• 240 cyc/h maximum operating rate

Complementary

• Type mechanically linked 1 NO + 2 NC auxiliary contacts type conforming to IEC 60947-5-1

Environment

• IP20 front face conforming to IEC 60529
• -5…60 °C ambient air temperature for operation
• -60…80 °C ambient air temperature for storage
• 0…3000 m operating altitude
