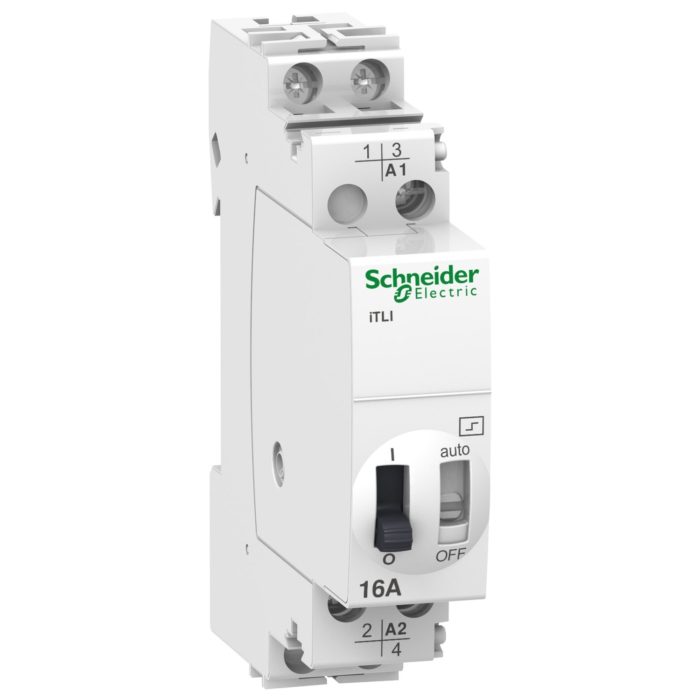

Schneider Impulse Relay A9C30115 2P 16A 1NO 1NC 16A 24 VAC

Rp316.217

Main Specification

• Acti9 product range
• Product name Acti9 iTL
• Impulse relay product type
• Device short name ITLi
• Device application Changeover relay
• 2 poles
• Pole contact composition 1 NO + 1 NC
• [In] rated current 16 A
• Network type AC
• [Uc] control circuit voltage
  • 24 V AC 50/60 Hz
  • 12 V DC

Schneider Impulse Relay A9C30115 Complementary

• Network frequency 50/60 Hz
• [Ue] rated operational voltage 250 V AC 50/60
• Control type
  • Remote and manual control
  • Coil deconnection
• Control signal type Impulse
• Switching frequency
  • 5 switching operations/minute
  • 100 switching operations/day
• Impulse duration 50 ms…1 s
• Remote control type Illuminated push-button 3 mA
• Local signalling ON/OFF indication
• Mounting mode Fixed
• Mounting support DIN rail
• 2 of 9 mm pitches
• Electrical durability
  • AC-21: 200000 cycles
  • AC-22: 100000 cycles
• Wire stripping length 11 mm
• Tightening torque 1 N.m

Environment

• Standards
  • EN 669-2-2
  • EN 669-1
• Product certifications
  • GOST
  • CCC
• Quality labels
  • CEBEC
  • NF
  • IMQ
  • VDE
  • KEMA
• 60 dB noise level
• IP degree of protection
  • IP20 conforming to IEC 60529 (on opening)
  • IP40 conforming to IEC 60529 (in enclosure)
• Pollution degree 3
• Tropicalisation 2
• Relative humidity 95 % at 55 °C
• Ambient air temperature for operation -20…50 °C
• Ambient air temperature for storage -40…70 °C

Packing Units

• PCE Unit Package Type
• 1 Units in Package
• Height 7.5 cm
• Width 1.7 cm
• Length 8.5 cm
• Weight 112 g

Warranty

• 18 Months of Contractual warranty

Out of stock

Schneider Impulse Relay A9C30115 2P 16A 1NO 1NC 16A 24 VAC. This Acti9 iTLi is a modular impulse relay. It is a changeover contact with 1 normally open and 1 normally close contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 24VAC or 12VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.
