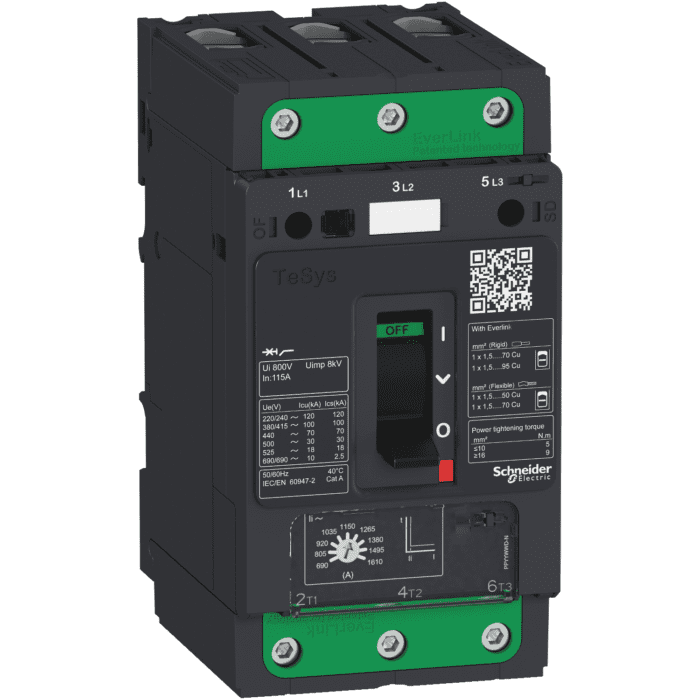

Schneider GV4LE80N TM Motor Circuit Breaker 80 Ampere 50kA

Rp2.054.932

Main Specification

• TeSys GV4 range of product
• GV4L device short name
• Product name:
  • TeSys GV4
  • TeSys Deca
• Motor circuit breaker product type
• Motor protection device application
• Trip unit technology:
  • Magnetic
  • Electronic
• 3 Poles
• AC network type
• Utilisation Category:
  • Category A conforming to IEC 60947-2
  • AC-3 conforming to IEC 60947-4-1
• Any operating  position

Complementary

• Motor power kW:
  • 37 kW at 400…415 V AC 50/60 Hz
  • 45 kW at 500 V AC 50/60 Hz
  • 55 kW at 500 V AC 50/60 Hz
  • 22 kW at 400…415 V AC 50/60 Hz
  • 30 kW at 500 V AC 50/60 Hz
  • 37 kW at 660…690 V AC 50/60 Hz
  • 45 kW at 660…690 V AC 50/60 Hz
  • 55 kW at 660…690 V AC 50/60 Hz
  • 30 kW at 400…415 V AC 50/60 Hz
  • 37 kW at 500 V AC 50/60 Hz
• Breaking capacity:
  • 100 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2
  • 50 kA Icu at 380…415 V AC 50/60 Hz conforming to IEC 60947-2
  • 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
  • 15 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
  • 8 kA Icu at 660…690 V AC 50/60 Hz conforming to IEC 60947-2
  • 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
• Toggle handle control type
• 80 Ampere rated current
• 480 – 1120 Ampere magnetic tripping current
• 690 V AC 50/60 Hz rated operational voltage conforming to IEC 60947-2
• 800 V AC 50/60 Hz rated insulation voltage conforming to IEC 60947-2
• 115 Ampere conventional free air thermal current conforming to IEC 60947-4-1
• 8 kV rated impulse withstand voltage conforming to IEC 60947-2
• 6.1 W power dissipation per pole
• 40000 cycles mechanical durability
• Electrical durability:
  • 14000 cycles for AC-3 at 440 V In/2
  • 7000 cycles for AC-3 at 440 V In

Environment

• 25 cyc/h maximum operating rate
• Continuous rated duty conforming to IEC 60947-4-1
• EverLink BTR screw connections – terminals:
  • Top 1 cable(s) 1.5…70 mm² – solid
  • Top 1 cable(s) 1.5…50 mm² – flexible
  • Bottom 1 cable(s) 2.5…95 mm² – solid
  • Bottom 1 cable(s) 2.5…70 mm² – flexible
• Tightening torque:
  • 9 N.m for cable 16…95 mm²
  • 5 N.m for cable 1.5…10 mm²
• Mechanical robustness:
  • Vibrations: +/- 1 mm 2…13.2 Hz conforming to IEC 60068-2-6
  • Vibrations: 0.7 gn 13.2…100 Hz conforming to IEC 60068-2-6
  • Shocks: 15 gn 11 ms conforming to IEC 60068-2-27
• Suitability for isolation conforming to IEC 60947-1 § 7-1-6
• Standards:
  • EN/IEC 60947-2
  • EN/IEC 60947-4-1
• Product certifications:
  • IEC
  • CCC
  • EAC
  • EU-RO MR
• Climatic withstand Conforming to IACS E10
• IK07 conforming to IEC 62262
• IP20 conforming to IEC 60529
• -50…85 °C ambient air temperature for storage
• 960 °C fire resistance conforming to IEC 60695-2-11
• 5000 m operating altitude
• -25…70 °C ambient air temperature for operation

Out of stock

Schneider GV4LE80N TM Motor Circuit Breaker 80 Ampere 50kA

Schneider GV4LE80N TM Motor Circuit Breaker

SKU: GV4LE80N Categories: Contactor, Motor Circuit Breaker
