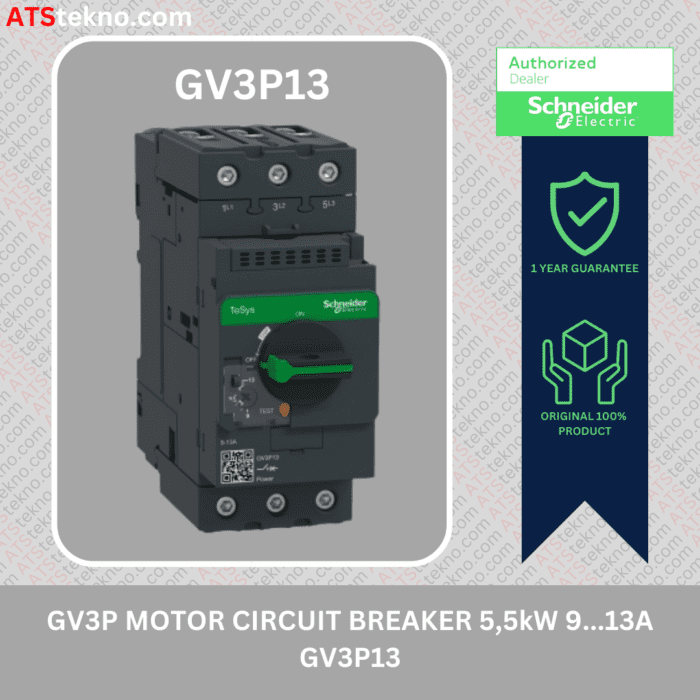

Schneider GV3P13 Magnetic Motor Circuit Breaker 40 Ampere 18,5KW

Rp2.030.609

Main Specification

• TeSys GV2 range of product
• GV2P device short name
• Product name:
  • TeSys GV2
  • TeSys Deca
• Motor circuit breaker product type
• Motor protection device application
• Thermal-magnetic trip unit technology
• 3 Poles
• AC network type
• Utilisation Category A conforming to IEC 60947-2
• 50/60 Hz network frequency conforming to IEC 60947-4-1
• Fixing mode:
  • 35 mm symmetrical DIN rail: clipped
  • Panel: screwed (with 3 x M4 screws)
• Any operating  position

Complementary

• Motor power kW:
  • 5.5 kW at 400/415 V AC 50/60 Hz
  • 7.5 kW at 500 V AC 50/60 Hz
  • 11 kW at 690 V AC 50/60 Hz
• Breaking capacity:
  • 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
  • 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
  • 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
  • 6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
  • 12 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
• Rated service short-circuit breaking capacity:
  • 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
  • 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
  • 50 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
  • 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
  • 50 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
• Rotary handle control type
• 13 Ampere rated current
• 9 – 13 Ampere thermal protection adjustment range
• 182 A magnetic tripping current
• 690 V AC 50/60 Hz rated operational voltage conforming to IEC 60947-2
• 690 V AC 50/60 Hz rated insulation voltage conforming to IEC 60947-2
• 13 Ampere conventional free air thermal current conforming to IEC 60947-4-1
• 6 kV rated impulse withstand voltage conforming to IEC 60947-2
• 8 W power dissipation per pole
• 100000 cycles mechanical durability
• 100000 cycles for AC-3 electrical durability at 415 V

Environment

• 25 cyc/h maximum operating rate
• Continuous rated duty conforming to IEC 60947-4-1
• Tightening torque:
  • 5 N.m on EverLink BTR screw connectors for cable 25 mm²
  • 8 N.m on EverLink BTR screw connectors for cable 35 mm²
• Mechanical robustness:
  • Shocks: 15 Gn for 11 ms closed conforming to IEC 60068-2-27
  • Shocks: 30 Gn for 11 ms opened conforming to IEC 60068-2-27
  • Vibrations: 4 Gn, 5…300 Hz conforming to IEC 60068-2-6
• Phase failure sensitivity conforming to IEC 60947-4-1
• Suitability for isolation conforming to IEC 60947-1 § 7-1-6
• Standards:
  • EN/IEC 60947-2
  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
• Product certifications:
  • CCC
  • EAC
  • BV
  • LROS (Lloyds register of shipping)
  • DNV-GL
  • ABS
  • UL
  • CSA
  • UKCA
• Climatic withstand Conforming to IACS E10
• IP20 conforming to IEC 60529
• -40…80 °C ambient air temperature for storage
• 960 °C fire resistance conforming to IEC 60695-2-11
• 3000 m operating altitude
• -20…60 °C ambient air temperature for operation

Out of stock

Schneider GV3L40 Magnetic Motor Circuit Breaker 9 – 13 Ampere 5.5 KW

Schneider GV3L40 Thermal Magnetic Motor Circuit Breaker

SKU: gv3p13 Categories: Contactor, Motor Circuit Breaker
