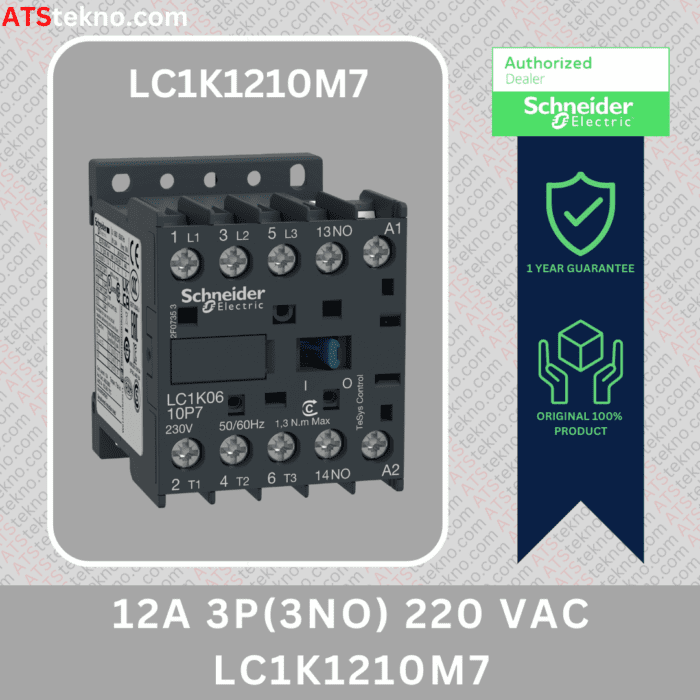

Schneider Contactor LC1K1210M7 12A 3P(3NO) 220 VAC

Rp529.359

Main Specification

• Contactor product type
• TeSys K product name
• LC1K device short name
• Control device application
• Motor control contactor application
• Utilisation category:
  • AC-3
  • AC-1
• 3P poles description
• 3NO power pole contact composition
• Rated operational voltage:
  • Power circuit: 690 V AC 50/60 Hz
  • Signalling circuit: 690 V AC 50/60 Hz
• Rated operational current:
  • 20 A (at <50 °C) at <= 440 V AC AC-1 for power circuit
  • 12 A at <= 440 V AC AC-3 for power circuit
  • 16 A (at <70 °C) at 690 V AC AC-1 for power circuit
• AC at 50/60 Hz control circuit type
  • 220…230 V AC 50/60 Hz control circuit voltage
• Motor power kW:
  • 4 kW at 480 V AC 50/60 Hz AC-3
  • 4 kW at 500…600 V AC 50/60 Hz AC-3
  • 4 kW at 660…690 V AC 50/60 Hz AC-3
  • 2.2 kW at 400 V AC 50/60 Hz AC-4
  • 3 kW at 220…230 V AC 50/60 Hz AC-3
  • 5.5 kW at 380…415 V AC 50/60 Hz AC-3
  • 5.5 kW at 440 V AC 50/60 Hz AC-3
• 1 NO auxiliary contact composition
• 8 kV rated impulse withstand voltage
• Overvoltage category III
• Conventional free air thermal current:
  • 20 A (at 50 °C) for power circuit
  • 10 A (at 50 °C) for signalling circuit

Complementary

• Irms rated making capacity:
  • 110 A AC for signalling circuit conforming to IEC 60947
  • 144 A AC for power circuit conforming to NF C 63-110
  • 144 A AC for power circuit conforming to IEC 60947
• Rated breaking capacity:
  • 110 A at 440 V conforming to IEC 60947
  • 80 A at 500 V conforming to IEC 60947
  • 70 A at 660…690 V conforming to IEC 60947
• Rated short-time withstand current:
  • 115 A 50 °C – 1 s for power circuit
  • 105 A 50 °C – 5 s for power circuit
  • 100 A 50 °C – 10 s for power circuit
  • 75 A 50 °C – 30 s for power circuit
  • 55 A 50 °C – 1 min for power circuit
  • 50 A 50 °C – 3 min for power circuit
  • 80 A – 1 s for signalling circuit
  • 90 A – 500 ms for signalling circuit
  • 110 A – 100 ms for signalling circuit
  • 25 A 50 °C – >= 15 min for power circuit
• Associated fuse rating:
  • 25 A gG at <= 440 V for power circuit
  • 25 A aM for power circuit
  • 10 A gG for signalling circuit conforming to IEC 60947
  • 10 A gG for signalling circuit conforming to VDE 0660
• 3 mOhm – Ith 20 A 50 Hz average impedance for power circuit
• Rated insulation voltage:
  • Power circuit:
    • 600 V conforming to UL 508
    • 690 V conforming to IEC 60947-4-1
  • Signalling circuit:
    • 690 V conforming to IEC 60947-4-1
    • 690 V conforming to IEC 60947-5-1
    • 600 V conforming to UL 508
  • Power circuit:
    • 600 V conforming to CSA C22.2 No 14
    • 600 V conforming to CSA C22.2 No 14

Environment

• > 10 MOhm insulation resistance for signalling circuit
• 30 VA (at 20 °C) inrush power in VA
• 4.5 VA (at 20 °C) hold-in power consumption in VA
• 1.3 W heat dissipation
• Control circuit voltage limits:
  • Operational: 0.8…1.15 Uc (at <50 °C)
  • Drop-out: 0.2…0.75 Uc (at <50 °C)
• 3600 cyc/h maximum operating rate
• Type instantaneous 1 NO auxiliary contacts type
• <= 400 Hz signalling circuit frequency
• 5 mA minimum switching current for signalling circuit
• 17 V minimum switching voltage for signalling circuit
• Plate & Rail mounting support
• Tightening torque:
  • 1.3 N.m – on screw clamp terminals with screwdriver:
    • Philips No 2
    • Flat Ø 6 mm
    • Pozidriv No 2
• Operating time:
  • 10…20 ms coil de-energisation and NO opening
  • 10…20 ms coil energisation and NO closing
• 0.5 mm non overlap distance
• 10 Mcycles mechanical durability
• Electrical durability
  • 0.3 Mcycles 20 A AC-1 at Ue <= 440 V
  • 1.3 Mcycles 12 A AC-3 at Ue <= 440 V
• Standards:
  • BS 5424
  • IEC 60947
  • NF C 63-110
  • VDE 0660
• Product certifications:
  • CSA
  • UL
  • UKCA
• IP2x conforming to VDE 0106
• Protective treatment:
  • TC conforming to IEC 60068
  • TC conforming to DIN 50016
• -25…50 °C ambient air temperature for operation
• -50…80 °C ambient air temperature for storage
• 2000 m operating altitude without derating
• Flame retardance:
  • V1 conforming to UL 94
  • Requirement 2 conforming to NF F 16-101
  • Requirement 2 conforming to NF F 16-102
