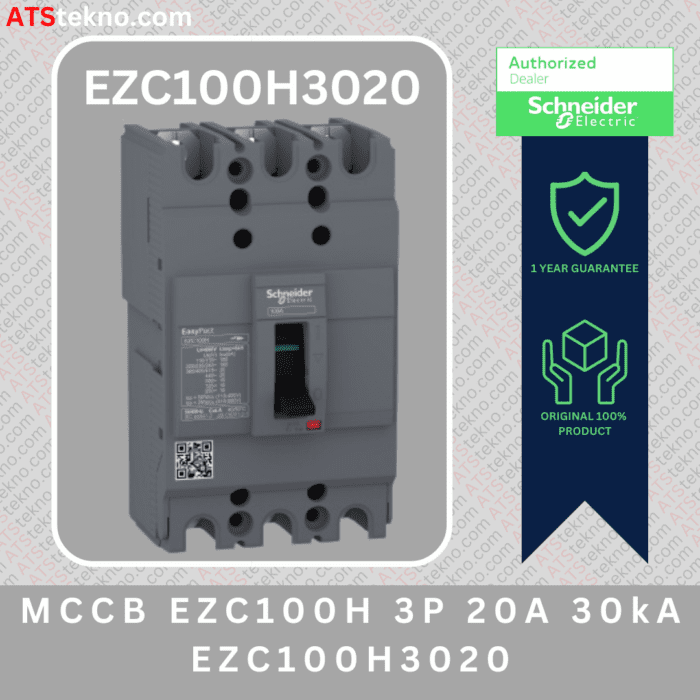

MCCB EZC100H 3P 20A 30kA EZC100H3020 Schneider

Rp810.602

Main Specification

• 690 V AC 50/60 rated insulation voltage Hz conforming to IEC 60947-2
• 6 kV rated impulse withstand voltage conforming to IEC 60947-2
• Rated operational voltage:
  • 550 V AC 50/60 Hz conforming to IEC 60947-2
  • 250 V DC conforming to IEC 60947-2
• MCCB EZC100H 3P 20A breaking capacity:
  • 10000 A Icu at 125 V DC 1P conforming to IEC 60947-2
  • 10 kA Icu at 250 V DC 2P conforming to IEC 60947-2
  • 10 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
  • 100 kA Icu at 110…130 V AC 50/60 Hz conforming to IEC 60947-2
  • 100 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2
  • 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
  • 30 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
  • 30 kA Icu at 400…415 V AC 50/60 Hz conforming to IEC 60947-2
• Rated service breaking capacity:
  • 15 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
  • 5 kA at 125 V DC conforming to IEC 60947-2
  • 5 kA at 250 V DC conforming to IEC 60947-2
  • 50 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
  • 50 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
  • 5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
  • 2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2
  • 7.5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
• Suitability for isolation conforming to IEC 60947-2
• Thermal-magnetic trip unit technology
• Protection type:
  • Short-circuit protection
  • Overload protection
• Pollution degree:
  • 3 conforming to IEC 60664-1
  • 3 conforming to IEC 947-1

Complementary

• Toggle control type
• Fixed mounting mode
• Backplate mounting support
• Front upside connection
• Front downside connection
• 8500 cycles of mechanical durability
• 1500 cycles 415 V AC 50/60 Hz of electrical durability conforming to IEC 60947-2
• 25 mm connection pitch
• Positive contact indication local signalling
• Without neutral protection setting
• Without earth-leakage protection

Environment

• Standards:
  • GB/T 14048.2
  • JIS C8201-2-2
  • EN/IEC 60947-1
  • EN/IEC 60947-2
• IP20 of protection conforming to IEC 60529
• IK07 of protection conforming to IEC 62262
• Ambient air temperature for operation at -25 to 70 °C
• Ambient air temperature for storage at -35 to 85 °C

Out of stock

MCCB EZC100H 3P 20A 30kA EZC100H3020 Schneider

MCCB EZC100H 3P 20A

SKU: EZC100H3020 Categories: MCCB, MCCB EZC
