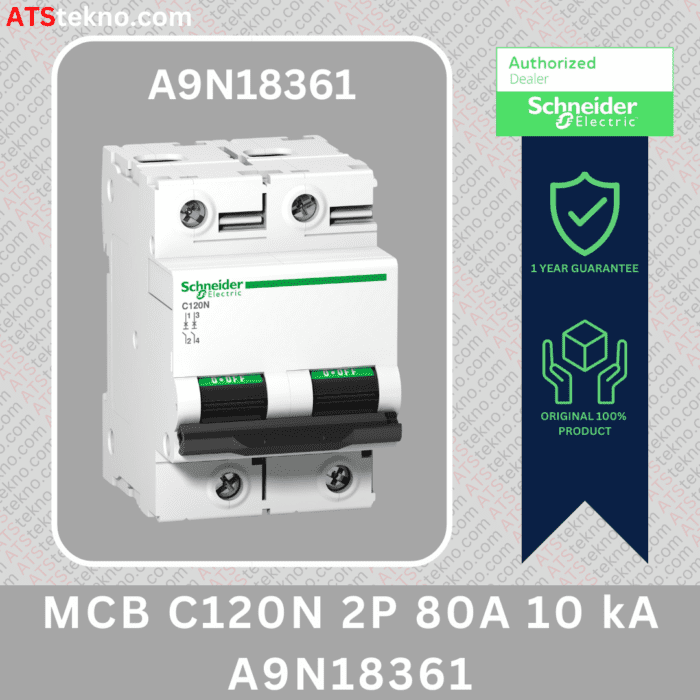

MCB C120N 2P 80A 10 kA (IEC 60947-2) A9N18361
| SKU | A9N18361 |
|---|---|
| Brand | Schneider |
| Categories | MCB, MCB C120 |
| Weight | 0,41 kg |
| Dimensions | 7,3 × 5,4 × 8,1 cm |
| Pole | |
| Ampere | |
| Warna | |
| Datasheet PDF | www.se.com/id/id/product/download-pdf/A9N18361 |
Rp929.683
MCB C120N 2P 80A at 30 ΓΒ°C 10 kA (IEC 60947-2) with
- Thermal-magnetic trip unit technology
- MCB C120N 2P 80A breaking capacity:
- 10000 A Icn at 230…400 V AC 50/60 Hz conforming to EN/IEC 60898-1
- 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
- 20 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2
- 10 kA Icu at 380…415 V AC 50/60 Hz conforming to EN/IEC 60947-2
- 10 kA Icu at <= 375 V DC conforming to EN/IEC 60947-2
- Suitability for isolation conforming to IEC 60947-2
- 50/60 Hz network frequency
- MCB C120N2P 80A rated operational voltage:
- <= 375 V DC
- 380…415 V AC 50/60 Hz
- 220…240 V AC 50/60 Hz
- 440 V AC 50/60 Hz
- 230…400 V AC 50/60 Hz
- 5…10 x In magnetic tripping limit
- Rated service breaking capacity:
- 7500 A 75 % conforming to EN/IEC 60898-1 – 230…400 V AC 50/60 Hz
- 4.5 kA 75 % conforming to EN/IEC 60947-2 – 440 V AC 50/60 Hz
- 7.5 kA 75 % conforming to EN/IEC 60947-2 – 380…415 V AC 50/60 Hz
- 15 kA 75 % conforming to EN/IEC 60947-2 – 220…240 V AC 50/60 Hz
- 10 kA 100 % conforming to EN/IEC 60947-2 – <= 375 V DC
- 3 limitation class conforming to EN/IEC 60947-2
- 500 V AC 50/60 Hz rated insulation voltage conforming to EN/IEC 60947-2
- 6 kV rated impulse withstand voltage conforming to EN/IEC 60947-2
- Contact position indicator
- Toggle control type
- Local signalling with ON/OFF indication
- Clip-on mounting mode
- 35 mm symmetrical DIN rail mounting support
- 20000 cycles
- 5000 cycles of electrical durability conforming to IEC 60947-2
- Connections – terminals:
- Tunnel type terminals1Γ’β¬Β¦50 mmΓΒ² rigid
- Tunnel type terminals1.5Γ’β¬Β¦35 mmΓΒ² flexible
- Separate block earth-leakage protection
- EN/IEC 60947-2 & EN/IEC 60898-1 standards
- EAC product certifications
- IP20 degree of protection conforming to IEC 60529
- 3 pollution degree conforming to IEC 60947-2
- 2 tropicalisation conforming to IEC 60068-1
- 95 % relative humidity at 55 ΓΒ°C
- 2000 m operating altitude
- Ambient air temperature for operation at -25Γ’β¬Β¦70 ΓΒ°C
- Ambient air temperature for storage at -40Γ’β¬Β¦85 ΓΒ°C
Stock Available
MCB C120N 2P 80A
