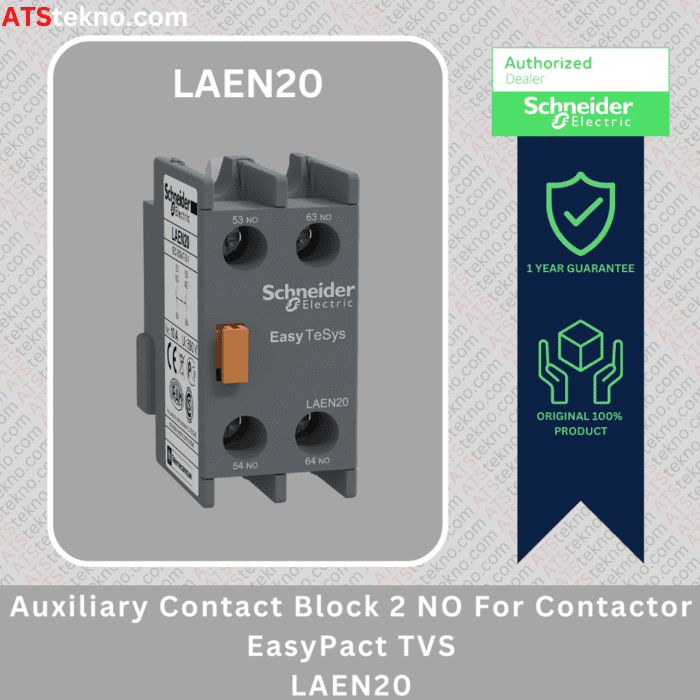

LAEN20 Auxiliary Contact Block 2 NO For Contactor EasyPact TVS

Rp42.988

Main Specification

• Auxiliary contact block product  type
• Signalling device application
• EasyPact TVS LC1E range compatibility
• Front mounting location
• Instantaneous auxiliary contacts operation
• 2 NO pole contact composition
• 690 V rated insulation voltage – for control circuit conforming to IEC 60947-5-1
• Rated operational voltage <= 690 V
• 8 A (at 60 °C) conventional free air thermal current
• 140 A AC Irms rated making capacity conforming to IEC 60947-5-1
• Rated short-time withstand current:
  • 100 A – 1 s
  • 120 A – 500 ms
  • 140 A – 100 ms
• GG fuse 10 A protection type
• 10 Mcycles mechanical durability
• 5 mA minimum switching current
• 17 V minimum switching voltage
• Non-overlap time:
  • 1.5 ms on energisation no overlap between NC and NO contact
  • 1.5 ms on de-energisation no overlap between NC and NO contact
• Insulation resistance > 10 MOhm
• Control circuit: screw clamp terminals :
  • 1 1 mm² – external diameter: 6 mm – cable stiffness: solid or flexible with cable end
  • 1 1 mm² – external diameter: 6 mm – cable stiffness: solid or flexible without cable end
  •  2 2.5 mm² – external diameter: 6 mm – cable stiffness: solid or flexible with cable end
  • 2 2.5 mm² – external diameter: 6 mm – cable stiffness: solid or flexible without cable end

Environment

• Standard environment characteristic
• IEC 60947-5-1 standards
• GOST product certifications
• IP20 conforming to IEC 60529
• TH protective treatment conforming to IEC 60068
• -5…55 °C ambient air temperature for operation
• -60…80 °C ambient air temperature for storage

Out of stock

LAEN20 Auxiliary Contact Block 2 NO For Contactor EasyPact TVS LC1E Schneider

Schneider LAEN20 Auxiliary Contact Block

SKU: LAEN20 Categories: Contactor, Kontaktor
