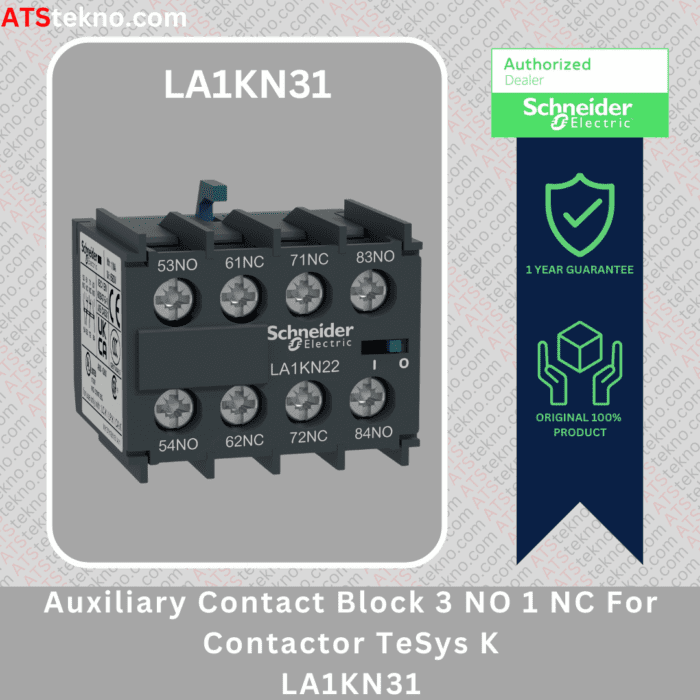

LA1KN31 Auxiliary Contact Block 3 NO 1 NC For Contactor TeSys K

Rp111.800

Main Specification

• TeSys K product range
• Auxiliary contact block component type
• Product compatibility TeSys :
  • TeSys K LC1K
    TeSys K CA2K
    TeSys K CA3K
• Side mounting location
• 3 NO 1 NC pole contact composition
• Instantaneous Contacts operation
• 690 V AC 25…400 Hz rated operational voltage
• LA1KN22 Auxiliary contact block rated insulation voltage 690 V conforming to:
  • IEC 60947-5-1
  • UL 60947-5-1
  • CSA C22.2 No 60947-5-1
• Conventional free air thermal current 10 A (at 50 °C)
• Standards:
  • EN/IEC 60947-5-1
  • UL 60947-5-1
  • CSA C22.2 No 60947-5-1
• Product certifications:
  • IECEE CB Scheme
  • UL
  • CSA
  • CCC

Complementary

• Irms rated making capacity 110 A at <= 690 V AC conforming to IEC 60947
• Permissible short-time rating:
  • 80 A 1 s
  • 60 A 500 ms
  • 110 A 100 ms
• GG fuse 10 A at <= 690 V conforming to IEC 60947 protection type
• 30 cycles mechanical durability
• 5 mA minimum switching current
• 17 V minimum switching voltage
• 0.5 mm non overlap distance
• insulation resistance > 10 MOhm
• Non-overlap time:
  • 1.5 ms on de-energisation no overlap between NC and NO contact
  • 1.5 ms on energisation no overlap between NC and NO contact
• Connections – terminals:
  • Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
  • Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
  • Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
  • Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
  • Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end
  • Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end
• Tightening torque 1.7 N.m with screwdriver:
  • flat Ø 6 mm
  • Philips No 2
  • pozidriv No 2

Environment

• Normal  environmental characteristic
• IP20 conforming to IEC 60529
• TH conforming to IEC 60068
• Ambient air temperature for storage at -60…80 °C
• Ambient air temperature for operation at -5…60 °C
• 2000 m operating altitude

Out of stock

LA1KN31 Auxiliary Contact Block 3 NO 1 NC For Contactor TeSys K Schneider

Schneider LA1KN31 Auxiliary Contact Block

SKU: LA1KN31 Categories: Contactor, Kontaktor
