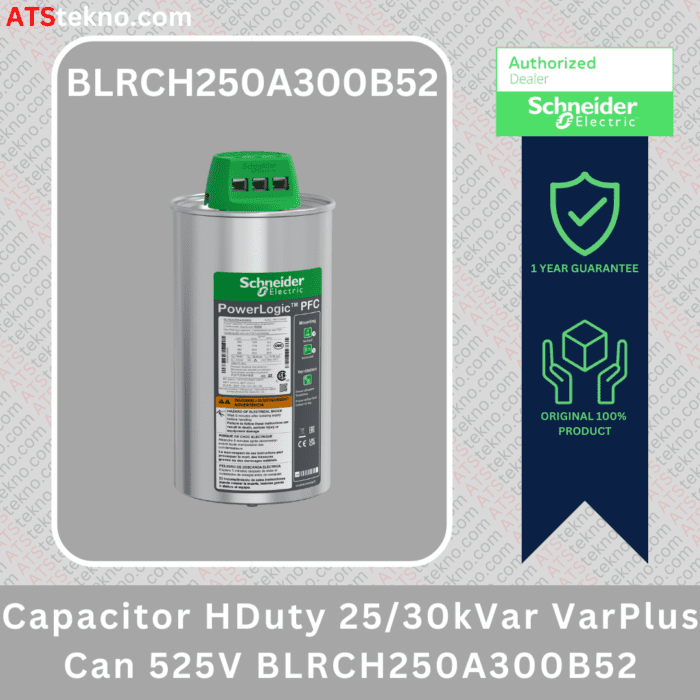

Capacitor HDuty 25/30kVar VarPlus Can 525V BLRCH250A300B52

Rp2.656.571

Main Specification

• Heavy duty capacitor product type
• 50/60 Hz network frequency
• Network harmonic content <= 20 %
• Electrical parameters:
  • 25 kvar 525 V 50 Hz
  • 30 kvar 525 V 60 Hz
•  Maximum permissible voltage at 1.1 x Un (8 hours over 24 hours)
• 1.8 x In continuous overcurrent capacity
• Rated voltage at 525 V AC 50/60 Hz

Complementary

• Dielectric losses < 0.2 W/kvar
• Power losses < 0.5 W/kVAr
• – 5 % to 10 % capacitance tolerance
• Voltage test:
  • 2.15 x Un AC between terminals for 10 s
  • <= 660 V – 3 kV AC between terminal and container for 10 s
  • >= 660 V – 6 kV AC between terminal and container for 10 s
• 250 x In inrush current
• 7000 switching maximum operation per year
• 130000 hours service life
• Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut) dielectric material
• Impregnation material:
  • Non-PCB dry PUR resin
  • Biodegradable
• Indoor installation type
• ClampTite terminal connections
• Upright/horizontal mounting mode

Environment

• Standards:
  • IEC 60831-2
  • IEC 60831-1
• IP20 from IP degree of protection
• 2000 m operating altitude
• Temperature class D
• Ambient air temperature for operation at -25 to 55 °C
• 95 % relative humidity

Packing Units

• PCE Type of Package
• 1 Units in Package
• 19 cm Package Height
• 19 cm Package Width
• 31 cm Package Length
• 3.057 kg Package Weight

Warranty

• 12 months Contractual warranty

Out of stock

Capacitor HDuty 25/30kVar VarPlus Can 525V BLRCH250A300B52 Schneider

Capacitor HDuty 25/30kVar VarPlus Can

SKU: BLRCH250A300B52 Categories: Capacitor, Capacitor BLRCH, Uncategorized
