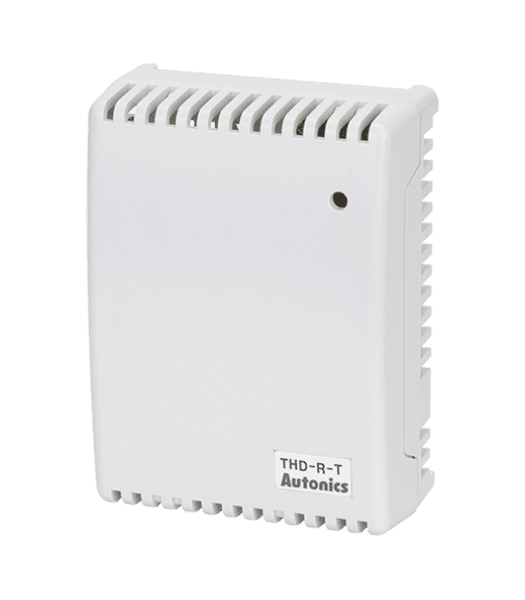

Autonics THD-R-T Temperature Sensor & Humidity Sensor 24V DC

SKU	AU-THD-R-T
Brand	Autonics
Categories	Autonics, Sensor, Temperature Controller
Weight	0,6 kg
Dimensions	8 × 10 × 5,5 cm
IP Rating	10

Rp1.714.728

Autonics THD-R-T Temperature/Humidity Sensor 24V DC

Metode tampilan : Non display
Kisaran pengukuran suhu : -19.9~60.0℃
Kisaran pengukuran Kelembaban : 0.0 ~ 99.9%RH(direkomendasikan: 0.0 ~ 90.0%)
Output suhu : Komunikasi RS485
Output kelembaban : Komunikasi RS485
Siklus sampling : 500ms
Catu daya : 24VDC
Tingkat proteksi : IP10
Metode tampilan Non display
Kisaran pengukuran suhu -19.9~60.0℃
Kisaran pengukuran Kelembaban 0.0 ~ 99.9%RH(direkomendasikan: 0.0 ~ 90.0%)
Output suhu Komunikasi RS485
Output kelembaban Komunikasi RS485
Siklus sampling 500 ms
Catu daya 24V DC
Tingkat proteksi IP10
Akurasi suhu ±1.0℃(at room temperature)
Akurasi kelembaban ±3%RH(30 to 70%RH, at room temp.),
±4%RH(10 to 90%RH)
Resolusi 1/1000
Lingkungan kadar suhu -20 hingga 60℃, ruang tertutup: -20 hingga 60℃
Berat Approx. 98g(approx. 55g)

Datasheet

Metode tampilan Non display
Kisaran pengukuran suhu -19.9~60.0℃
Kisaran pengukuran Kelembaban 0.0 ~ 99.9%RH(direkomendasikan: 0.0 ~ 90.0%)
Output suhu Komunikasi RS485
Output kelembaban Komunikasi RS485
Siklus sampling 500 ms
Catu daya 24V DC
Tingkat proteksi IP10
Akurasi suhu ±1.0℃(at room temperature)
Akurasi kelembaban ±3%RH(30 to 70%RH, at room temp.),
±4%RH(10 to 90%RH)
Resolusi 1/1000
Lingkungan kadar suhu -20 hingga 60℃, ruang tertutup: -20 hingga 60℃
Berat Approx. 98g(approx. 55g)

Note :

Accuracy:
- Room temperature is 23℃±5℃.
- It may cause degree of degradation when this unit is exposed to organic chemicals such as alcohol gas or sulfuric acid.
- It may cause degree of degradation for humidity when using this unit at high temperature/humidity environment for a long time.
- It may cause error of humidity value when this unit is exposed to high humidity environment (over 80%RH) for a long time.
The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation.
