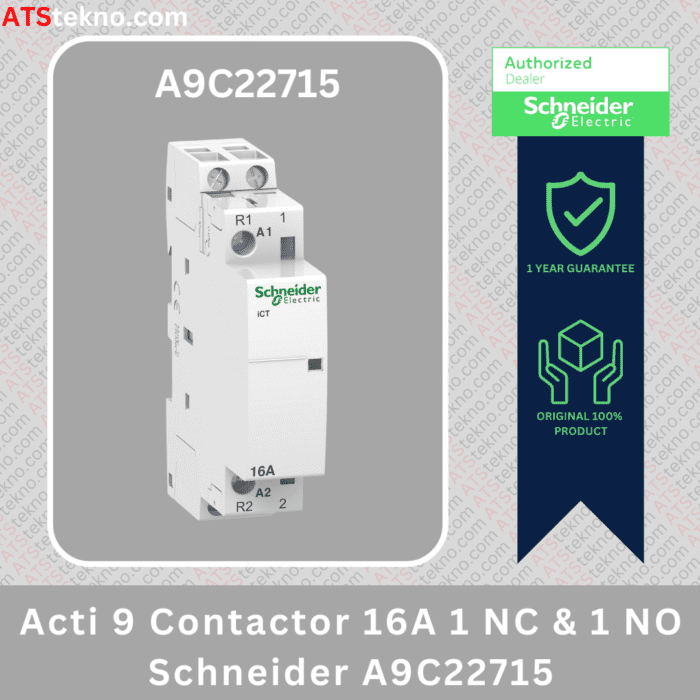

Acti 9 Contactor 16A 1 NC & 1 NO Schneider A9C22715
| SKU | A9C22715 |
|---|---|
| Brand | Schneider |
| Categories | Contactor, Kontaktor |
| Weight | 0,117 kg |
| Dimensions | 6 × 1,8 × 8,1 cm |
| Ampere | |
| Warna | |
| Kontak | |
| Datasheet PDF | www.se.com/id/id/product/download-pdf/A9C22715 |
Rp244.782
Acti 9 Contactor 16A 1 NC & 1 NO Schneider A9C22715 with:
- Acti 9 Contactor 16A AC-7A & 6 A AC-7B rated operational current
- 1 NO + 1 NC pole contact composition
- Control circuit voltage at 230 to 240 V AC 50 Hz
- 50 Hz network frequency
- 250 V AC 50 Hz rated operational voltage
- Maximum power at 1.2 W at 250 V AC
- Rated insulation voltage at 500 V AC 50/60 Hz
- Rated impulse withstand voltage 4 kV
- Control signal type > Maintained
- Switching frequency at 100 switching operations/day
- Action indicator local signalling
- Hold-in power consumption at 2.7 VA
- Inrush power at 9.2 VA
- Clip-on mounting mode
- 35 mm symmetrical DIN rail mounting support
- Mechanical durability at 1000000 cycles
- Electrical durability at:
- 100000 cycles IEC/EN 61095 16 A 50 Hz AC-7A
- 30000 cycles IEC/EN 61095 6 A 50 Hz AC-7B
- 30000 cycles IEC/EN 61095 50 Hz AC-7C
- 100000 cycles EN/IEC 60947-4-1 50 Hz AC-1
- 30000 cycles EN/IEC 60947-4-1 50 Hz AC-3
- 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a
- 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b
- Connections – terminals:
- Control circuit: tunnel type terminals2 cable(s) 1.5 mmΓΒ² rigid
- Power circuit: tunnel type terminals1 cable(s) 1Γ’β¬Β¦4 mmΓΒ² flexible
- Power circuit: tunnel type terminals1 cable(s) 1.5Γ’β¬Β¦6 mmΓΒ² rigid
- Control circuit: tunnel type terminals1 cable(s) 1.5Γ’β¬Β¦2.5 mmΓΒ² rigid
- Control circuit: tunnel type terminals2 cable(s) 1.5Γ’β¬Β¦2.5 mmΓΒ² flexible
- Tightening torque:
- Control circuit: 0.8 N.m
- Power circuit: 0.8 N.m
- IACTs product compatibility
- ICT compatibility code
- IEC/EN 61095 standards
- Noise level at 30 dB
- Heat dissipation at 0.9 W at 50/60 Hz
- IP20 degree of protection
- Tropicalisation:
- 2 conforming to EN 60947-4-1
- 2 conforming to EN 61095
- 2 conforming to IEC 1095
- 95% relative humidity at 55 ΓΒ°C
- Ambient air temperature for operation at -5 to 60ΓΒ°C
- Ambient air temperature for storage at -40 to 70ΓΒ°C
Out of stock
Acti 9 Kontaktor ?DIN? iCT 16 Ampere kontak 1 NC 1 NO
